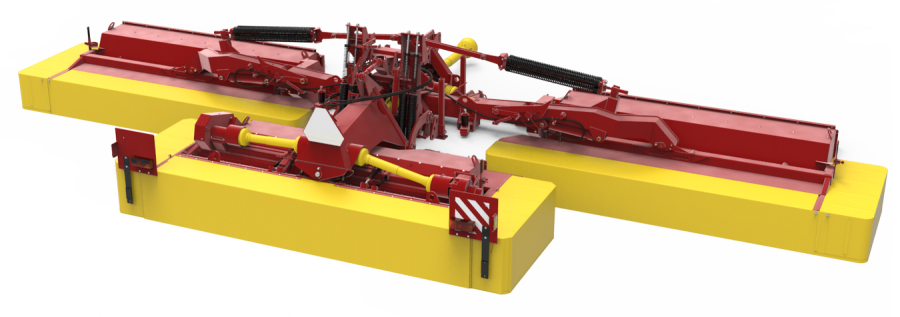

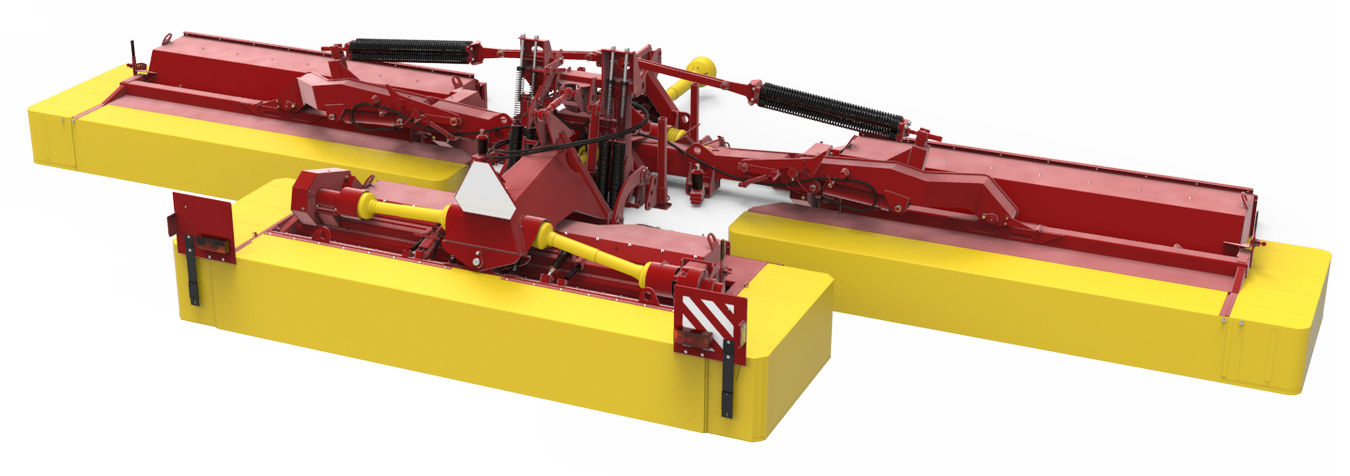

Mounted rotary three-section mower-conditioner CH90
Productivity: 10.0 ha/h
Aggregation type: mounted
Operating width: 8.7 m
Drawbar category: 4
The CH90 mounted rotary mower‑conditioner is the ideal solution for efficient mowing of green seeded and natural grasses.
This multifunctional mower not only performs high‑quality mowing but also immediately flattens the mowed mass, laying it in three neat swaths. It can also be used for simple mowing without flattening.
High productivity
Hay and haylage are harvested in a short time with conditioning and loose swath laying that speeds up drying, saving time and reducing operations.
Reliable KUHN cutting mechanism
Decks on each section regulate the degree of flattening for different crops and conditions.
Flexible configuration
Dismantle the crushing device and install replaceable swath shields when flattening is not needed or for legumes to avoid losses.
Independent section copying
Each of the three sections copies the relief individually, ensuring a uniform low cut even on uneven ground.
9‑meter working width
The wide swath delivers high productivity and efficient field coverage.

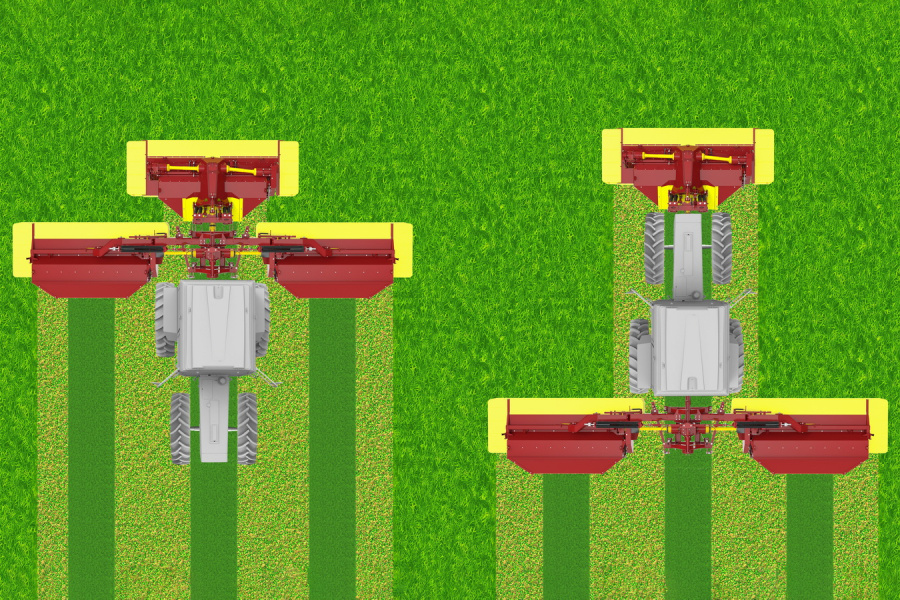

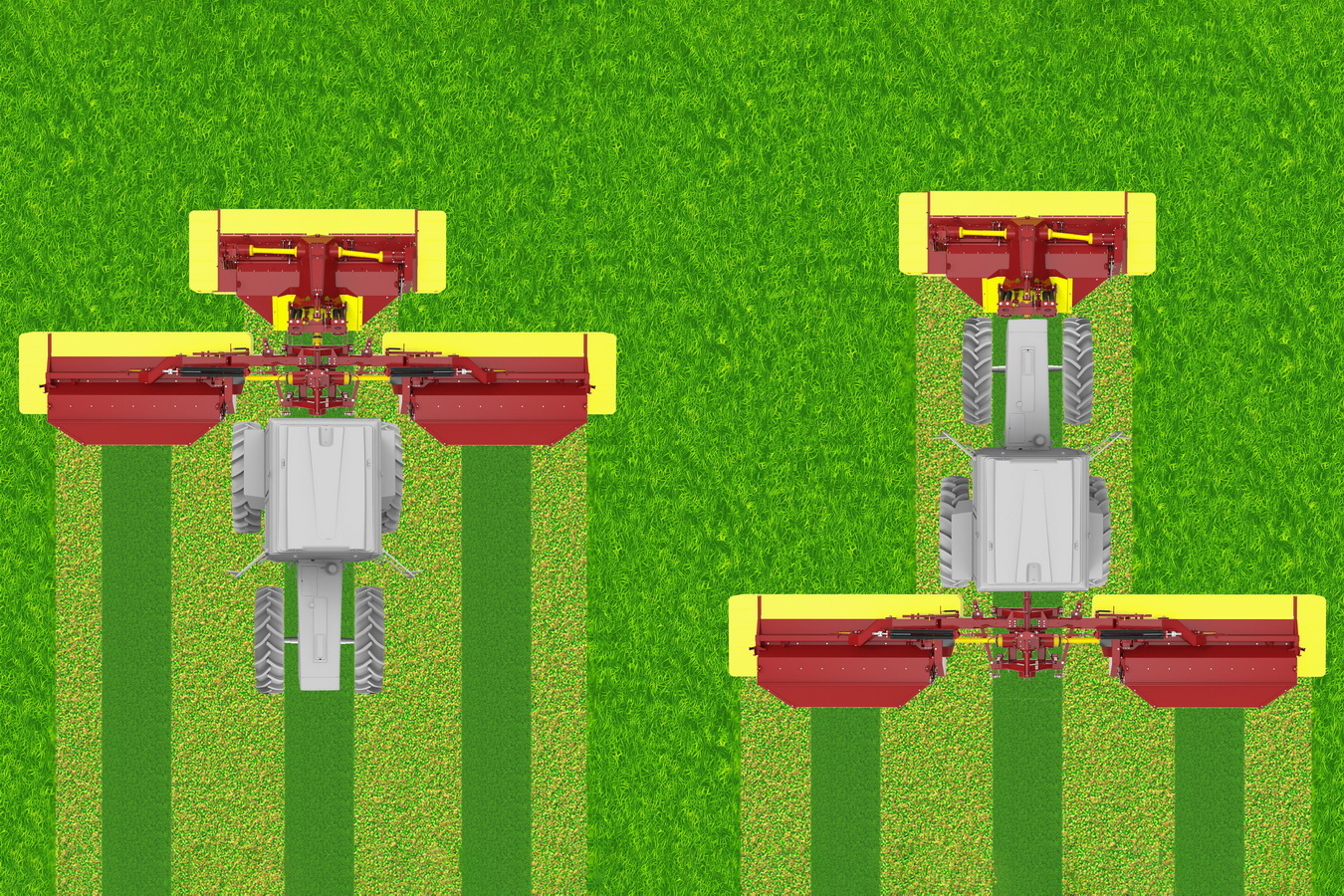

Dual attachment schemes

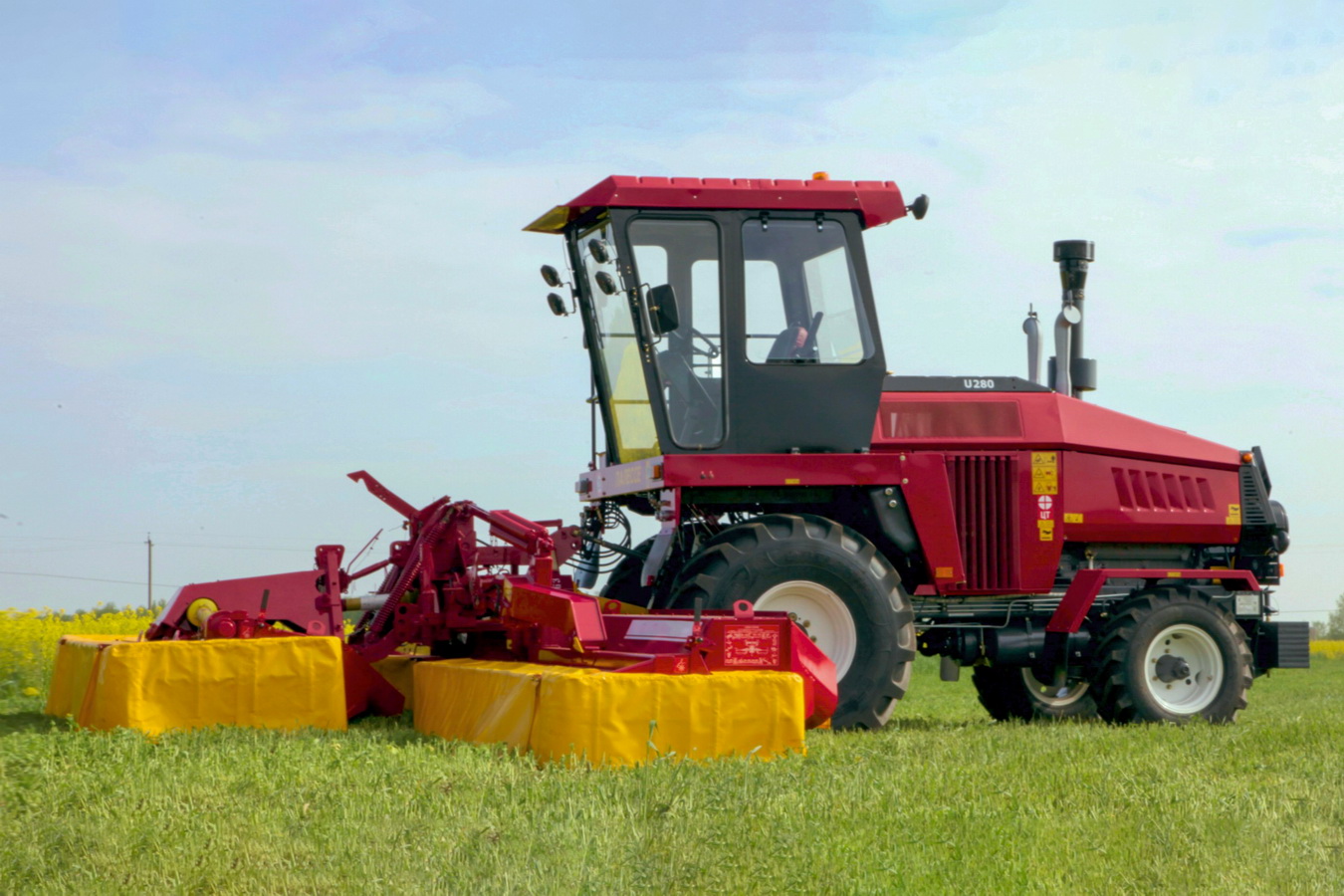

Compact attachment for MS280 or tractors with reversible control post offers excellent overview; separate attachment reduces soil pressure and tractor load.
| Model | CH90 | |
| Required power | ||
| Tractor drawbar category | 4 | |
| Engine power, h.p. | 218 | |
| Key parameters | ||
| Productivity, ha/h | 10.0 | |
| Aggregation type | mounted | |
| Cutting device | disk | |
| Working width, m | 8.7 | |
| Cutting height, mm | 50 / 100 | |
| Operating speed, km/h | 12 | |
| Type of flattening device | beater | |
| Width of the formed swath, m | 1.8 | |
| Overall dimensions and weight in working position | ||
| Length / width / height, mm | 3 900 / 9 500 / 1 600 | |
| Weight, kg | 3 800 | |
