Pull-type forage harvester FT40

3.0

Maize header, m

1.85

Pick-up, m

3.4

Grass header, m

Typ: pull-type

Description
Characteristics

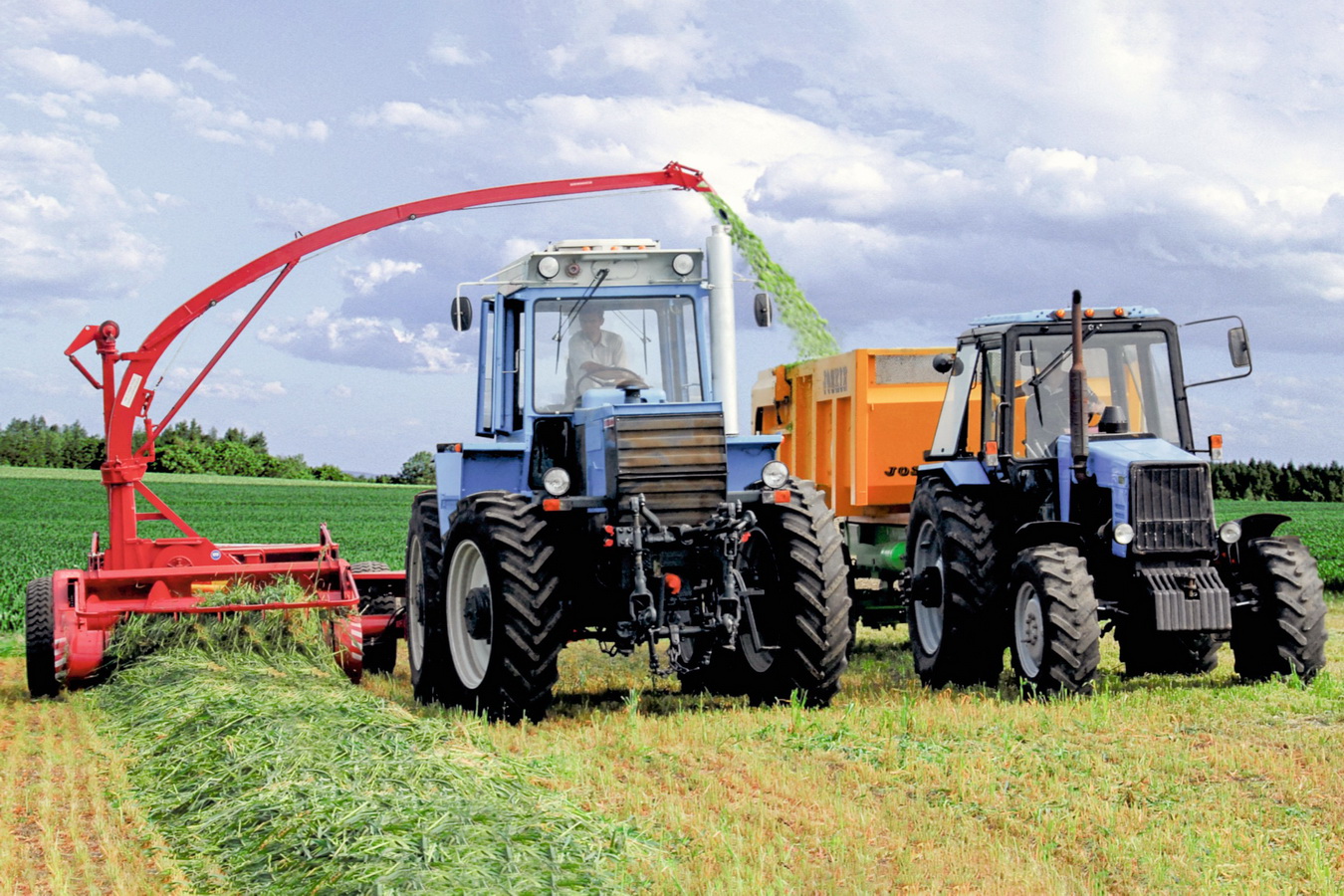

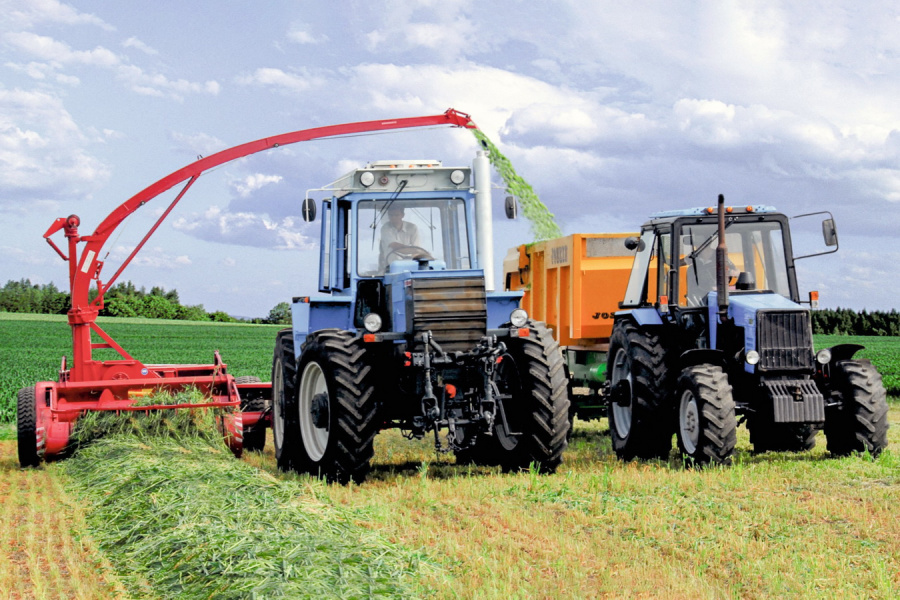

The FT40 forage harvester is designed for mowing corn, sorghum, sunflower and other high‑stemmed crops, as well as for mowing greens and picking dried seed and natural grasses from swaths with crushing and loading into vehicles.

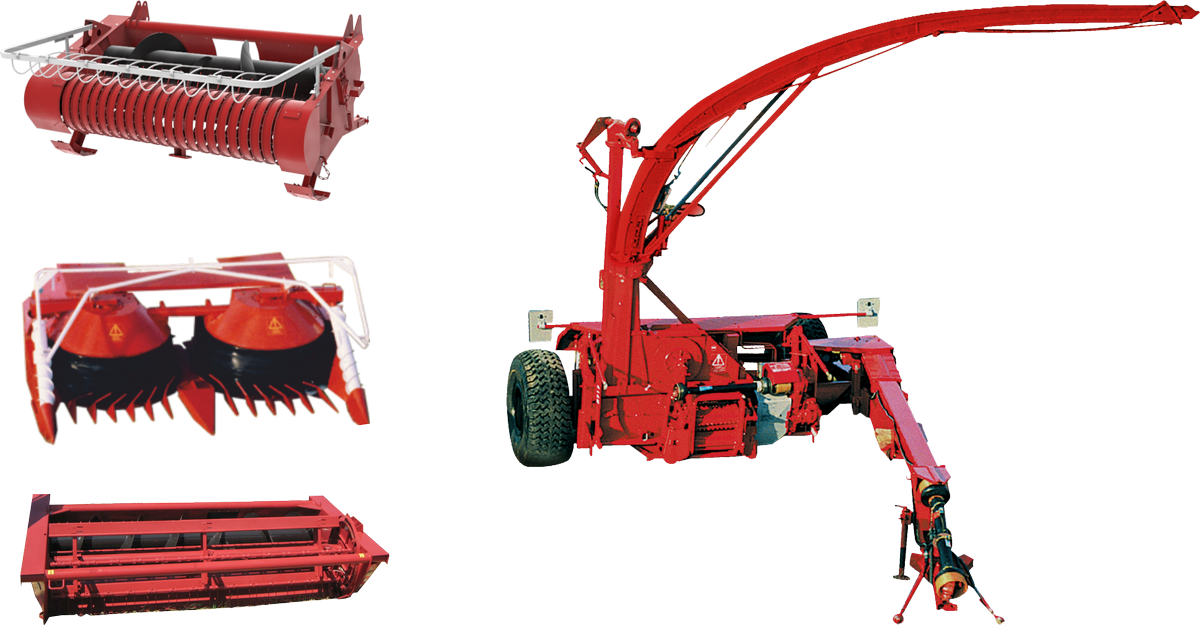

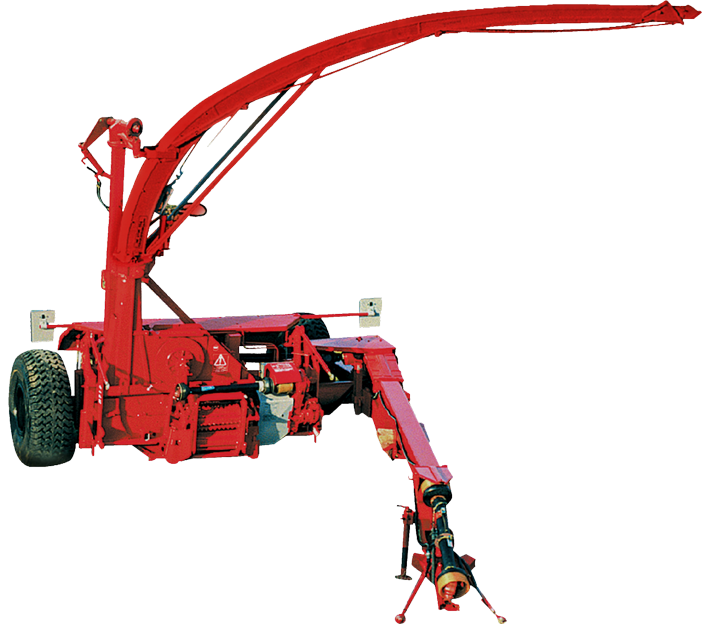

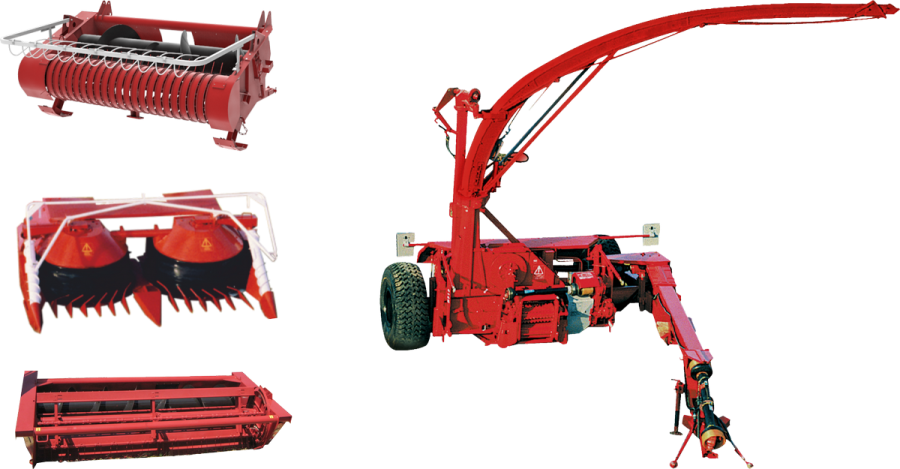

The FT40 includes a trailed chopper, a rotary header for harvesting rough‑stemmed crops, a header for grass harvesting and a pick‑up.

The harvester is aggregated with tractors from the second to the fourth drawbar category with an engine power of 150‑250 hp. The FT40 opens unique opportunities for harvesting crushed feed, allowing optimal use of tractors available in your farm.

The disc‑type chopping unit with 12 knives ensures the highest possible quality of leaf‑stem mass chopping and corn kernels crushing. The high degree of mass chopping improves the occupancy rate of the trailer, thereby reducing the number of vehicles engaged in hauling. Stone and metal detectors reliably protect the feeding unit from foreign objects, preventing emergency breakdowns. Depending on the working conditions, replaceable wear‑resistant sheets can be installed in the chopping unit.

Harvesting of all types of forage crops

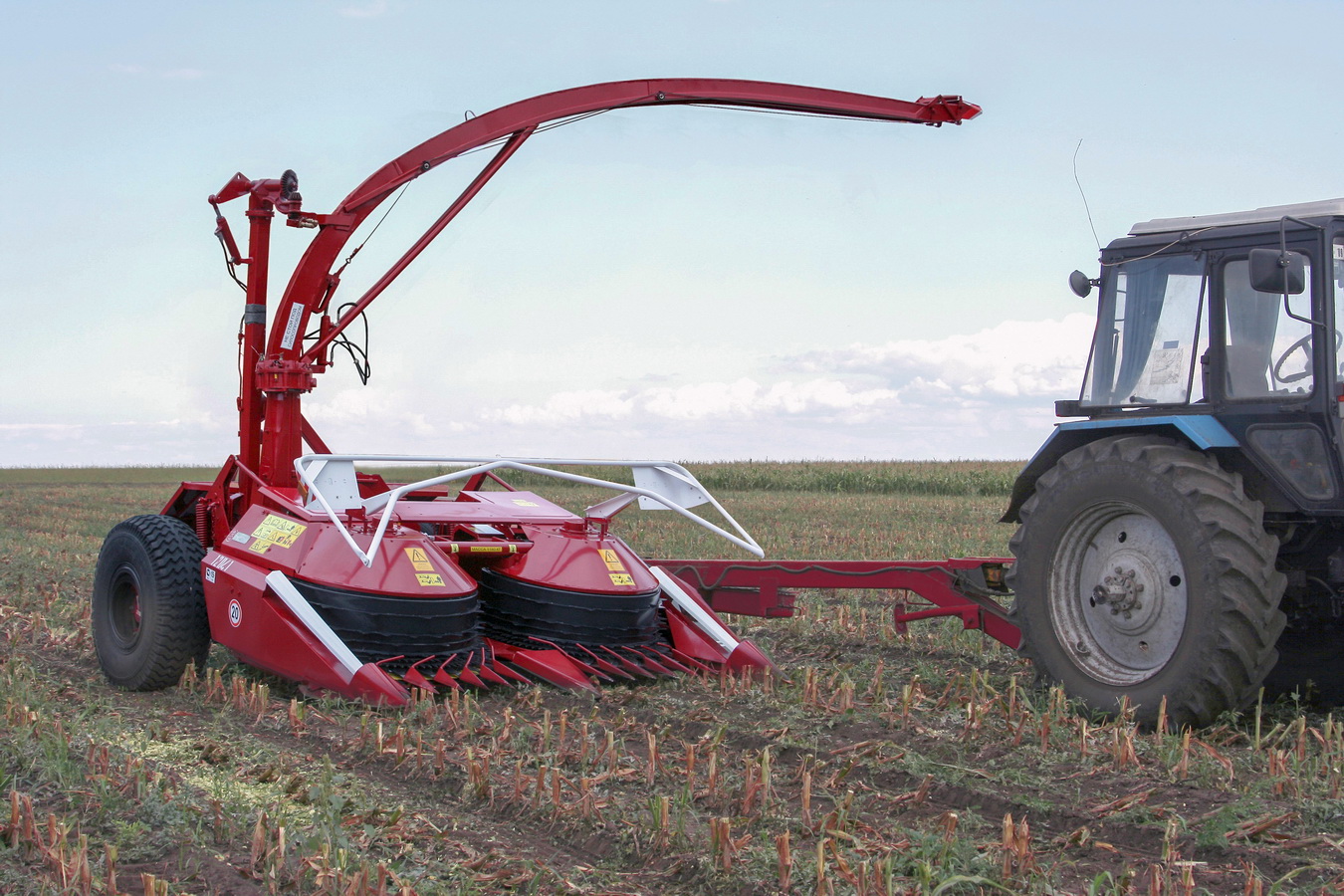

Drum‑type header

Ensures harvesting of corn without height limitation and without loss of ears. Feeds stems into the feeding unit with the butt‑log forward for better chopping.

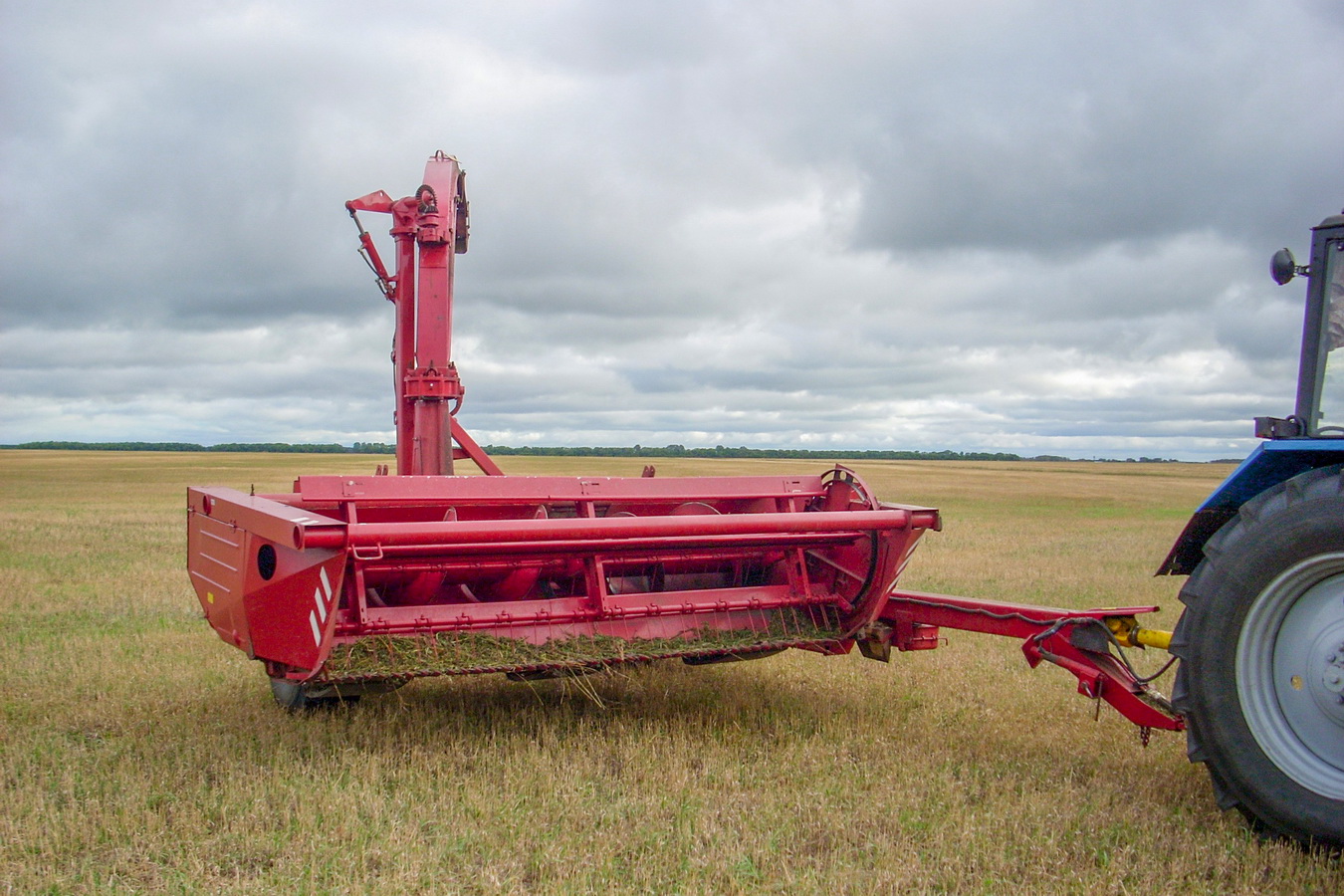

Platform‑type grass header (4.0 m)

Designed for harvesting grasses and other low‑stemmed crops. An optimal choice for agricultural enterprises and farmers.

Pick‑up (1.85 m)

Ideal solution for efficient selection of pre‑mown plant mass from swaths. A reliable one‑way coupling in the gearbox provides protection against breakage.

Simple solution to complex tasks

Universal drawbar hitch

Allows quick aggregation with various tractor models without additional accessories.

Easy road transport

The FT40 does not require removing adapters or folding the silage spout when moving on public roads. A detachable silage spout transfers between working and transport position in no more than 5 minutes.

The high productivity of the harvester combined with a simple and reliable technological scheme determines its successful use in harvesting hayloft silage and green top dressing.

Model		FT40
Required power
Tractor drawbar category		2-4
Engine power, h.p.		150-250
Headers
Maize header, m		3.0
Pick-up, m		1.85
Header for grass harvesting, m		3.4
Feeding unit
Width, mm		414
Number of feeder rolls, pcs		4
Metal detector, stone detector DRUM PROTECT		●
Chopping unit
Type		radial disc
Diameter of chopping disc, mm		1 100
Frequency of disc rotation, rpm		1 054
Number of knives on the disc, pcs		12
Variants of knives arrangement, pcs		3 / 6 / 12
Length of cut, mm		5-48
Adjustment of cutting length		manual
Knives sharpening system		manual
Silage spout
Rotation angle of silage spout, °		270
Discharge height, mm		3 600
Silage additive tank capacity, l		400
Overall dimensions in transport position
Length / width / height, mm		10 150 / 4 440 / 3 650
Weight
Chopper, kg		3 100
Maize header, kg		1 250
Pick-up, kg		1 250
Header for grass harvesting, kg		630

● serial.
