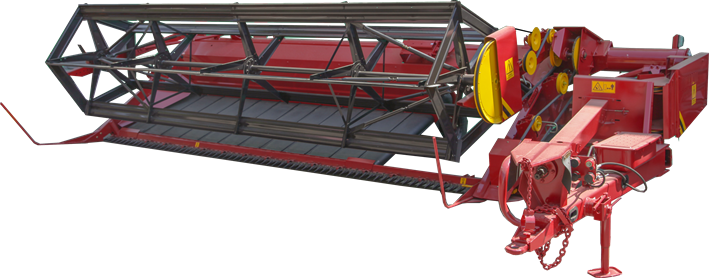

Pull-type draper header

5.0-10.7

Working width, m

Typ: pull-type

Relief copying

Description
Characteristics

Pull‑type draper headers — high profitability for mowing and swathing of grain crops using a separate harvesting method.

Draper headers are aggregated with widespread 1.4 power class tractors, which allows agricultural organizations to optimally load the tractor fleet.

To ensure optimal harvesting conditions, the header reel can be moved relative to the cutterbar and its rotation speed can be adjusted. The design of the pull‑type device and the arrangement of the rear wheels maintain a right angle between the direction of movement of the tractor and the header cutterbar. The transfer of the header from the transport position to the working position and back is carried out by one worker and doesn’t require uncoupling from the tractor.

Key advantages

Adjustable reel

The reel position and rotation speed can be adjusted on the go for optimal crop feeding and clean cutting.

Quick transport

Switching between working and transport position is done by one person without uncoupling from the tractor.

Double swathing

ZhVZ‑10.7M and ZhVZ‑9.2 headers can work together to lay a 19.5 m double swath, reducing combine passes from three to one.

Lower cost per ton

Double swathing in low‑yield conditions cuts harvesting costs and lowers the cost of a ton of grain.

Lightweight robust reel

The slatted reel with tension elements ensures straightness, rigidity and strength during operation.

Hydraulic rear wheel

The rear wheel is rotated by a hydraulic cylinder, allowing easy maneuvering of a large header.

The draper headers provide good quality and optimal width windrowing, high productivity for mowing and picking. In conditions of low yields of grain crops, the double swathing technique reduces the number of combine passes from three to one, thereby reducing harvesting costs.

Model	ZhVZ-5	ZhVZ-6	ZhVZ-7.0M	ZhVZ-7.0UM	ZhVZ-9	ZhVZ-9.2	ZhVZ-10.7M
Header aggregation	1.4 power class tractors
Working width, m	5.0	6.0	7.0	7.0	9.0	9.2	10.7
Productivity, ha/h	2.4-3.9	2.8-4.7	3.3-5.5	3.3-3.5	4.0-7.0	4.0-7.0	5.2-8.5
Cutting height, mm	70-250			90-250	70-250
Width of the formed swath, m	1.4		1.6-2.2			2.2	1.6-2.2
Height of formed swath, m	0.6
Type of cutting unit	segmental-finger
Window location	displaced		central			side	central
Operating speed, km/h	5-8
Road speed, km/h	15
Overall dimensions in transport position:
Length, mm	7 900	8 300	10 800	10 800	13 200	13 700	14 700
Width, mm	4 700
Height, mm	2 900
Weight, kg	1 800	1 900	2 100	2 250	2 500	2 630	2 630
