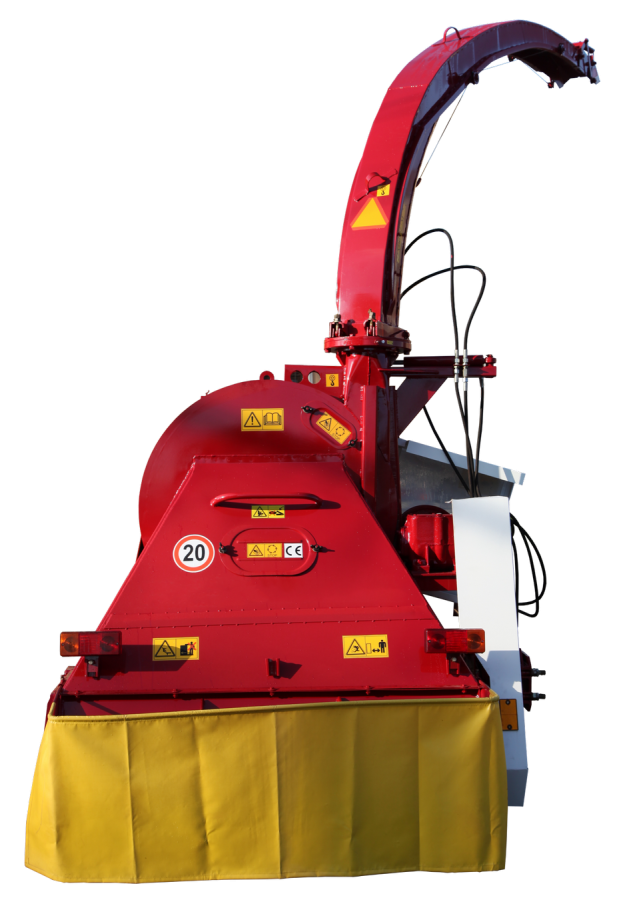

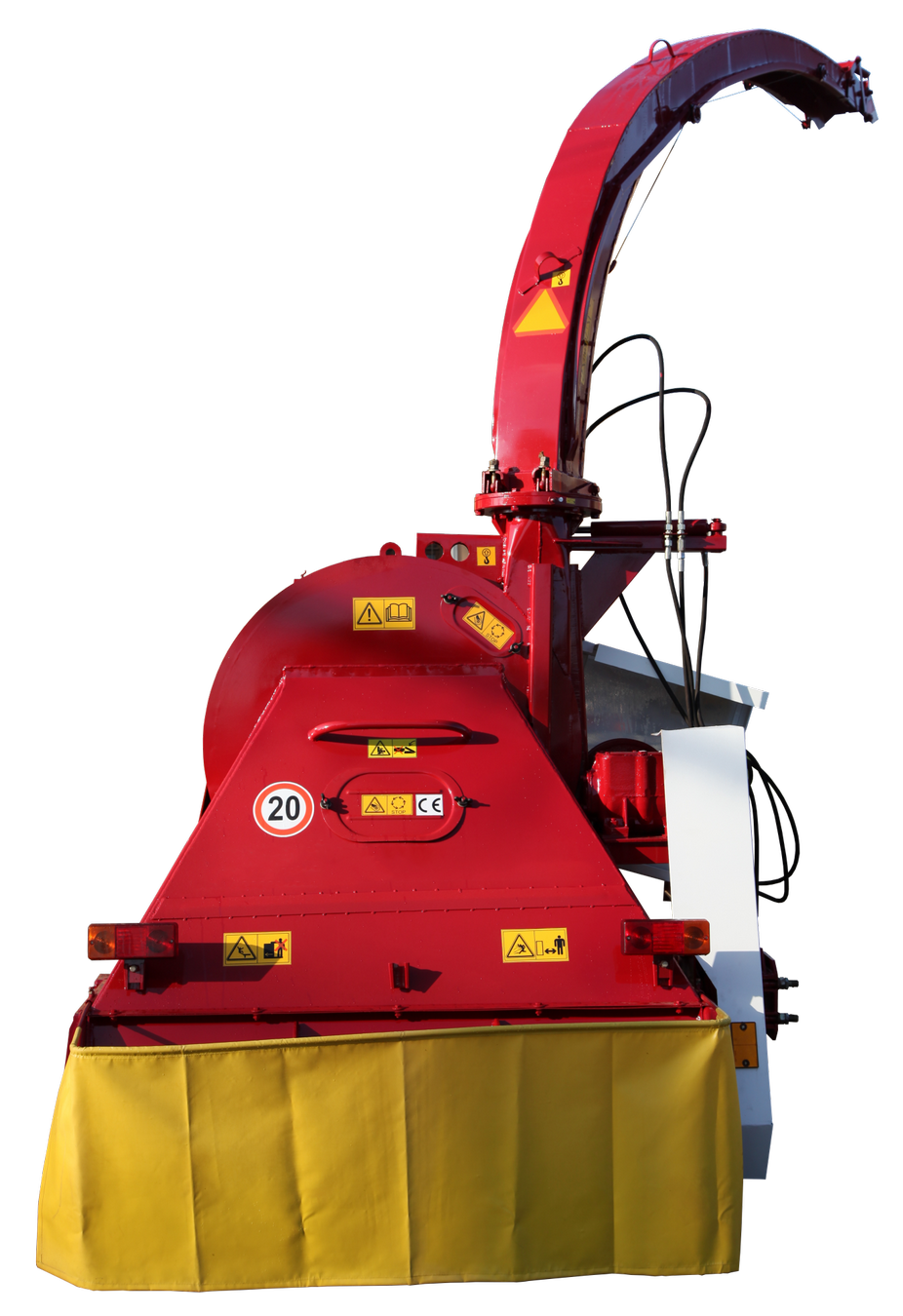

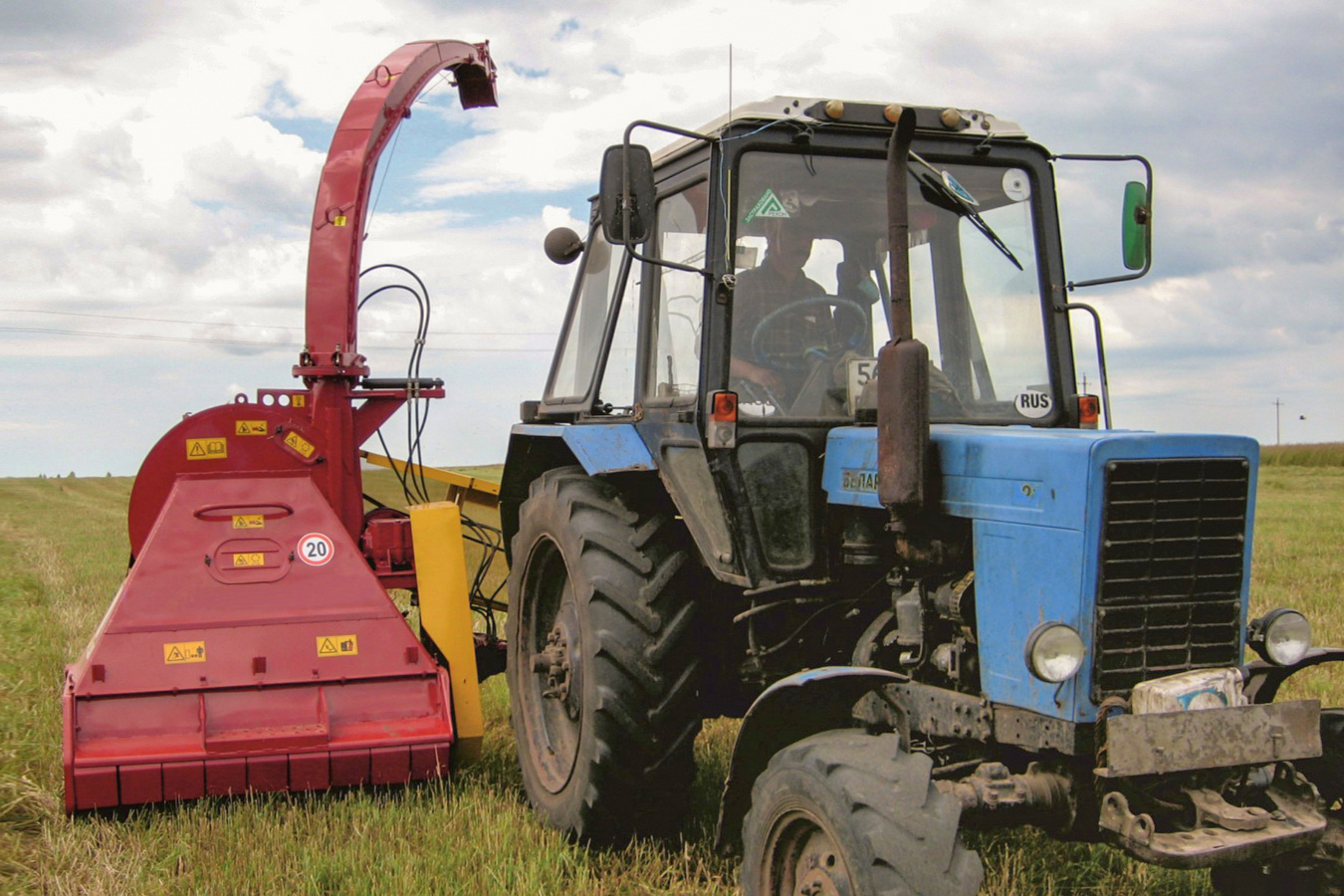

Mounted rotary mower-shredder CH15
Productivity: 18.0 ha/h
Aggregation type: mounted
Operating width: 1.5 m
Drawbar category: 1.4

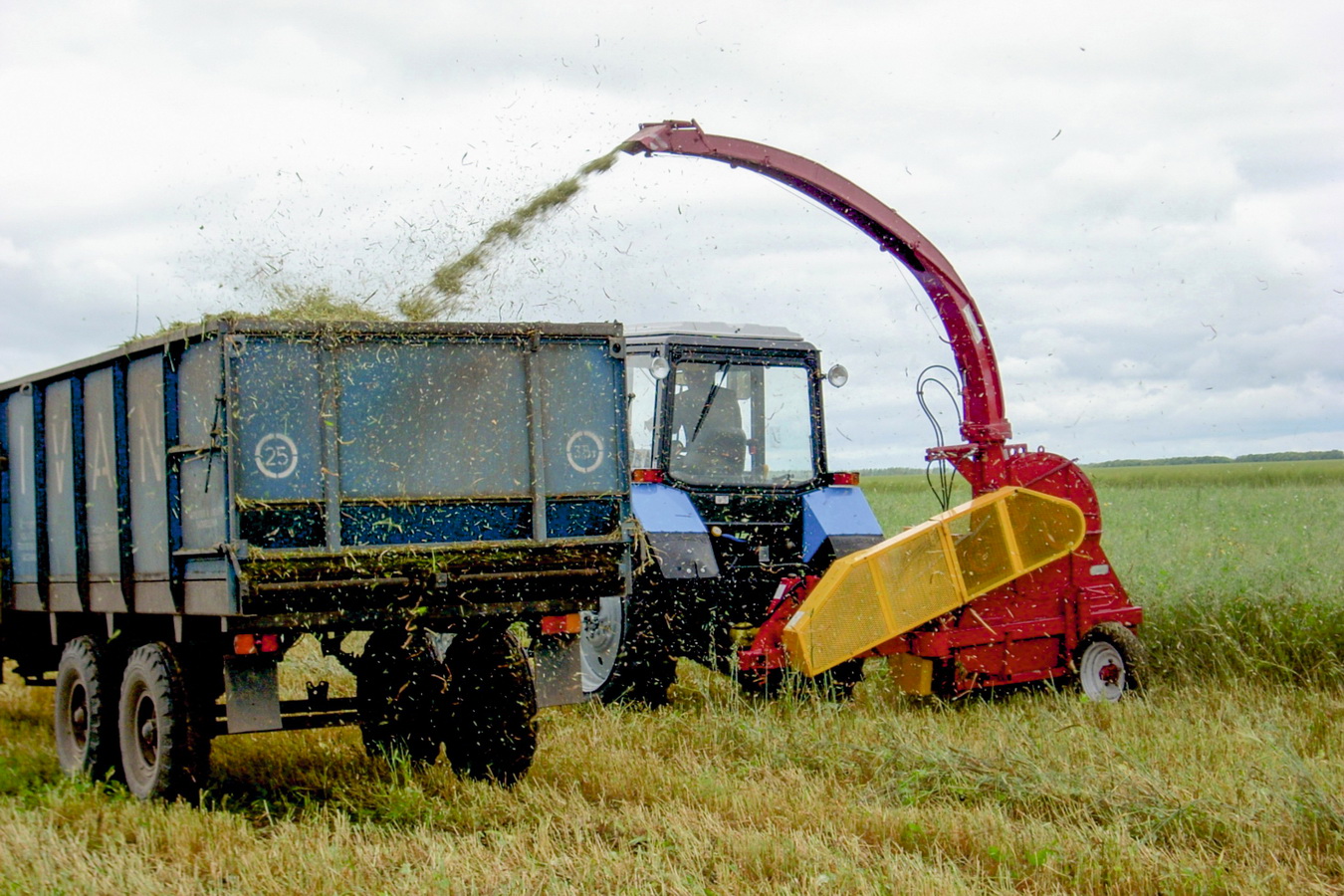

The CH15 mower-shredder is an ideal solution for efficient mowing of green grasses, corn and other silage crops up to 1.2 meters high with simultaneous shredding and loading into vehicles. It is also great for mowing potato tops.
During moving the plants are fed by the stem tilt after which the rotor knives effectively cut and chop the plant mass. The crushed mass is fed to the blades of the accelerator ensuring a fast and high‑quality unloading process.
L‑shaped knives
Ensure minimal damage to plant roots, increasing the yield of second and subsequent mowing while reducing soil contamination of the crushed mass. Hinged attachment reduces breakage from stones.
Accelerator
Provides additional crushing of the plant mass and high transportation speed, contributing to good compaction of the crushed mass in the body of vehicles.
Potato top harvesting
Can be used for harvesting potato tops with spreading of crushed mass on the field by installing a damper.

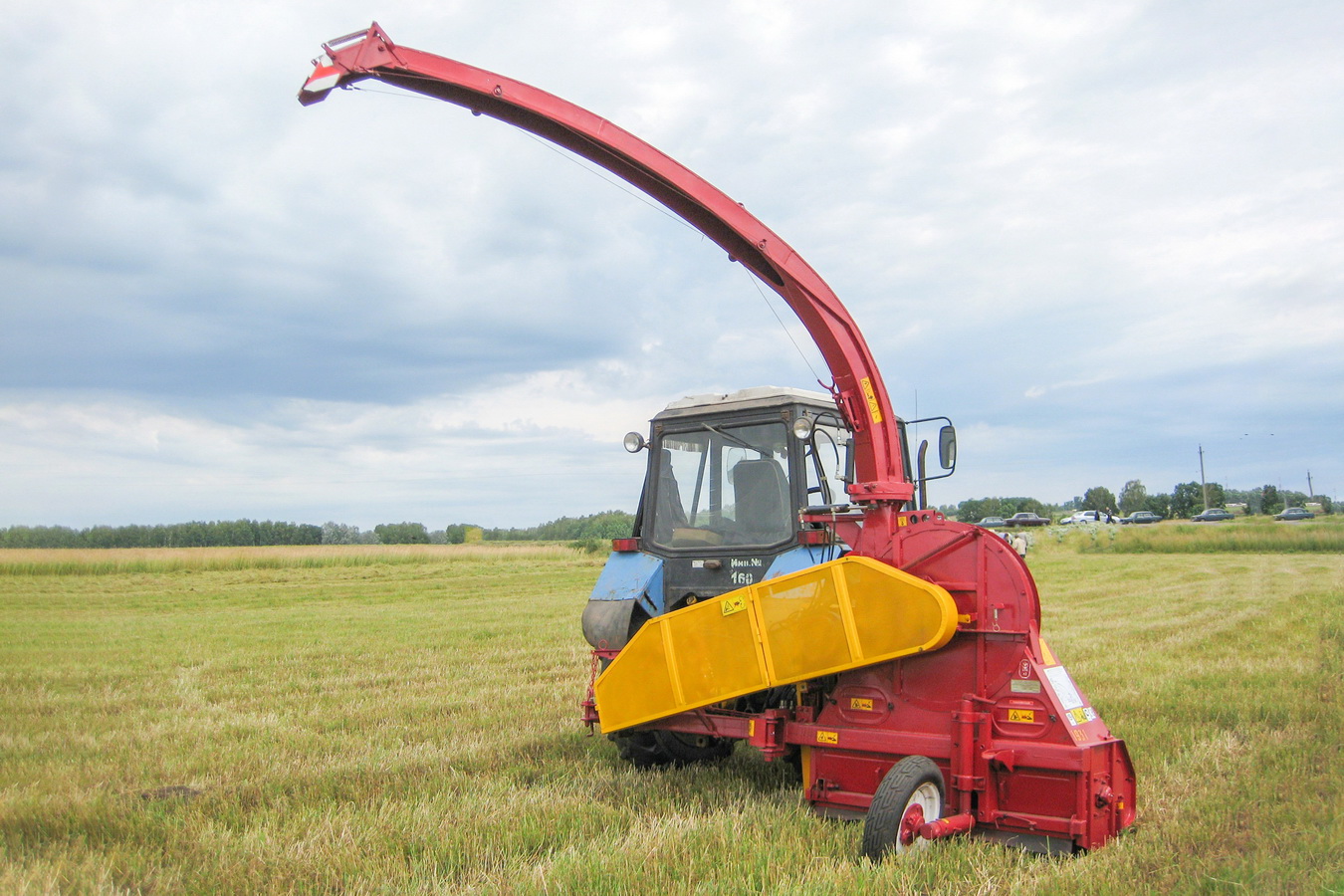

Rotary silage spout
Ensures optimal loading of the trailer and reduces time to move from working to transport position.
CE‑marking
Certified for compliance with EU requirements, confirming high quality and safety.
| Model | CH15 | |
| Required power | ||
| Tractor drawbar category | 1.4 | |
| Engine power, h.p. | 80 | |
| Key parameters | ||
| Productivity, ha/h | 18 | |
| Throughput, kg/s | 5 | |
| Aggregation type | mounted | |
| Cutting device | rotary with L-shaped knives | |
| Working width, m | 1.5 | |
| Cutting height, mm | 60-350 | |
| Operating speed, km/h | 8 | |
| Loading height, m | 3.6 | |
| Overall dimensions and weight in working position | ||
| Length / width / height, mm | 1 850 / 4 650 / 1 200 | |
| Weight, kg | 950 | |
