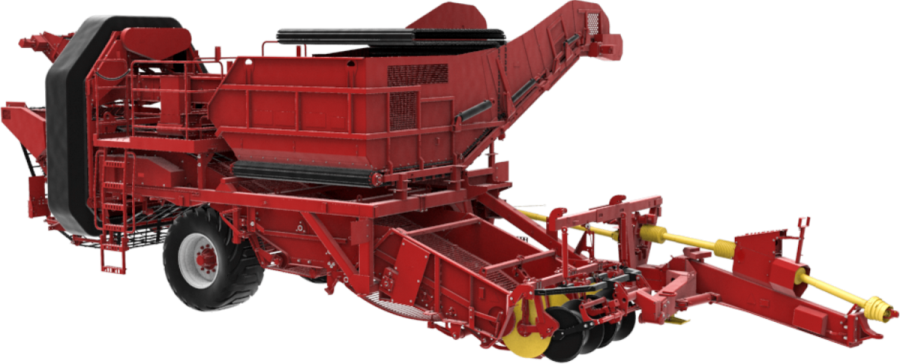

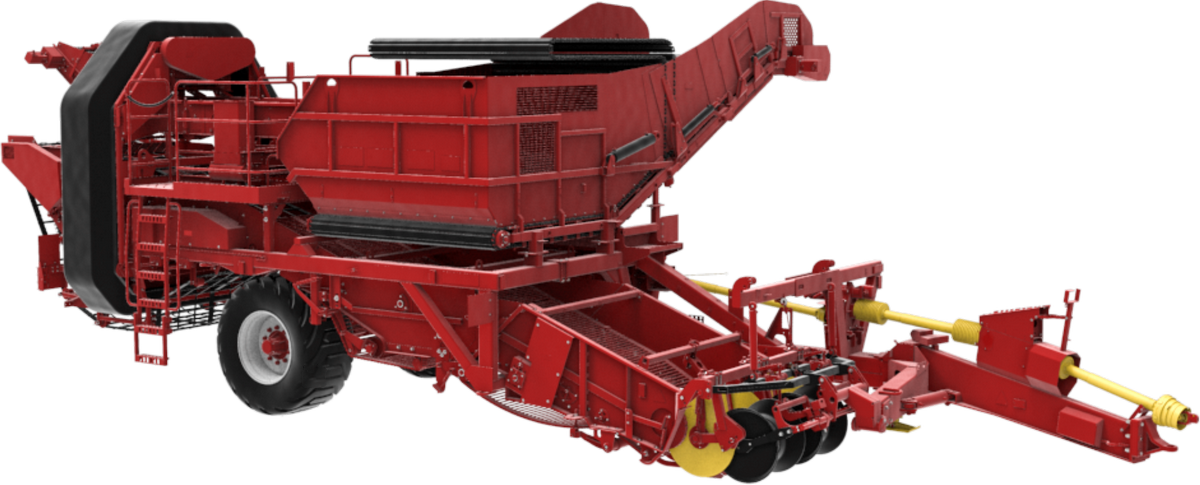

Semi-trailed potato harvester with lateral digging PT2

2-3

Tractor drawbar category

0.42-1.44

Productivity, ha/h

6.0 t

Capacity

Typ: pull-type

Description
Characteristics

The semi-trailed potato harvester with lateral digging PT2 is designed for harvesting potatoes on ridge plantings with row spacing of 70, 75 or 90 cm in potato cultivation zones with a moderate climate.

The harvester is aggregated with tractors of 3 drawbar category and easily copes with its tasks on light and medium soils, including light and medium loams. The maximum permissible slope of the fields for the harvester is no more than 4º.

The design of the harvester has an enlarged technological path, consisting of 3 sifting conveyors, and the digging section has a hinged connection with the main frame for copying the relief of the field. These technological solutions provide high productivity of the harvester, which makes potato harvesting economical and efficient.

Modern technological solutions

Haulm separation system

Efficiently removes tops from the potato flow, improving cleaning quality.

Inclined slides

Lower and upper tiers for separating small impurities, ensuring cleaner potatoes.

Bucket and intermediate conveyors

For more careful feeding of potatoes from sifting conveyors to the sorting table, which is equipped with platforms for 4 sorters.

With PT2 potato harvesting will become a comfortable process, since the harvester has a number of modern technological solutions that ensure gentle handling and high sorting capacity.

Hydraulic system and control

The PT2 harvester has an autonomous hydraulic drive system for a number of working bodies with a drive from the tractor power take-off shaft. The hydraulic working bodies are controlled from the tractor cabin using a remote control. A mechanical or combined drive of the harvester's working bodies is also allowed. In this case, the harvester's hydraulic system operates from the tractor's hydraulic system and is connected via quick-connect couplings.

Hopper and video control

Hopper capacity 6 tons

Large capacity for efficient accumulation of potatoes without frequent unloading stops.

Video control system

Two video cameras and a monitor located in the tractor cabin ensure complete monitoring of the technological process.

The PT2 harvester combines high performance with gentle handling, making it an excellent choice for modern potato cultivation operations.

Model		PT2
Main characteristics
Type of digging		lateral
Tractor drawbar category		2-3
Productivity, ha/h		0.42-1.44
Number of harvested rows		2
Working width, m		1.5
Digging depth, mm		250
Completeness digging up of tubers, %		97
Content of tubers in a heap, %		90
Damaged tubers, %		5
Storage hopper
Capacity, t		6.0
Unloading height, mm		2 000 – 3 900
Chassis
Operating speed, km/h		8
Road speed, km/h		15
Road clearance, mm		200
Overall dimensions and weight in transport position
Length / width / height, mm		12 100 / 3 500 / 4 000
Weight, kg		11 500
