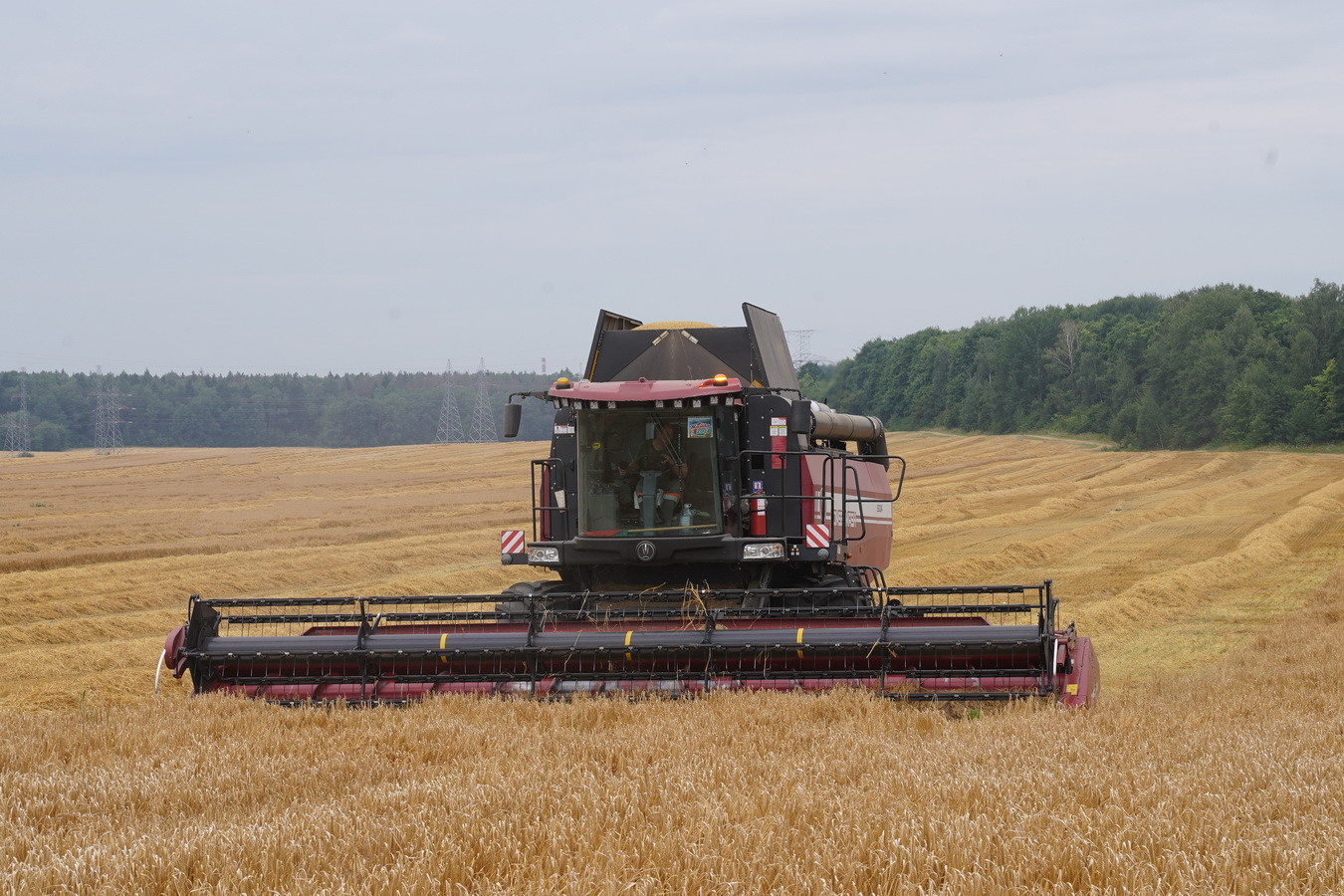

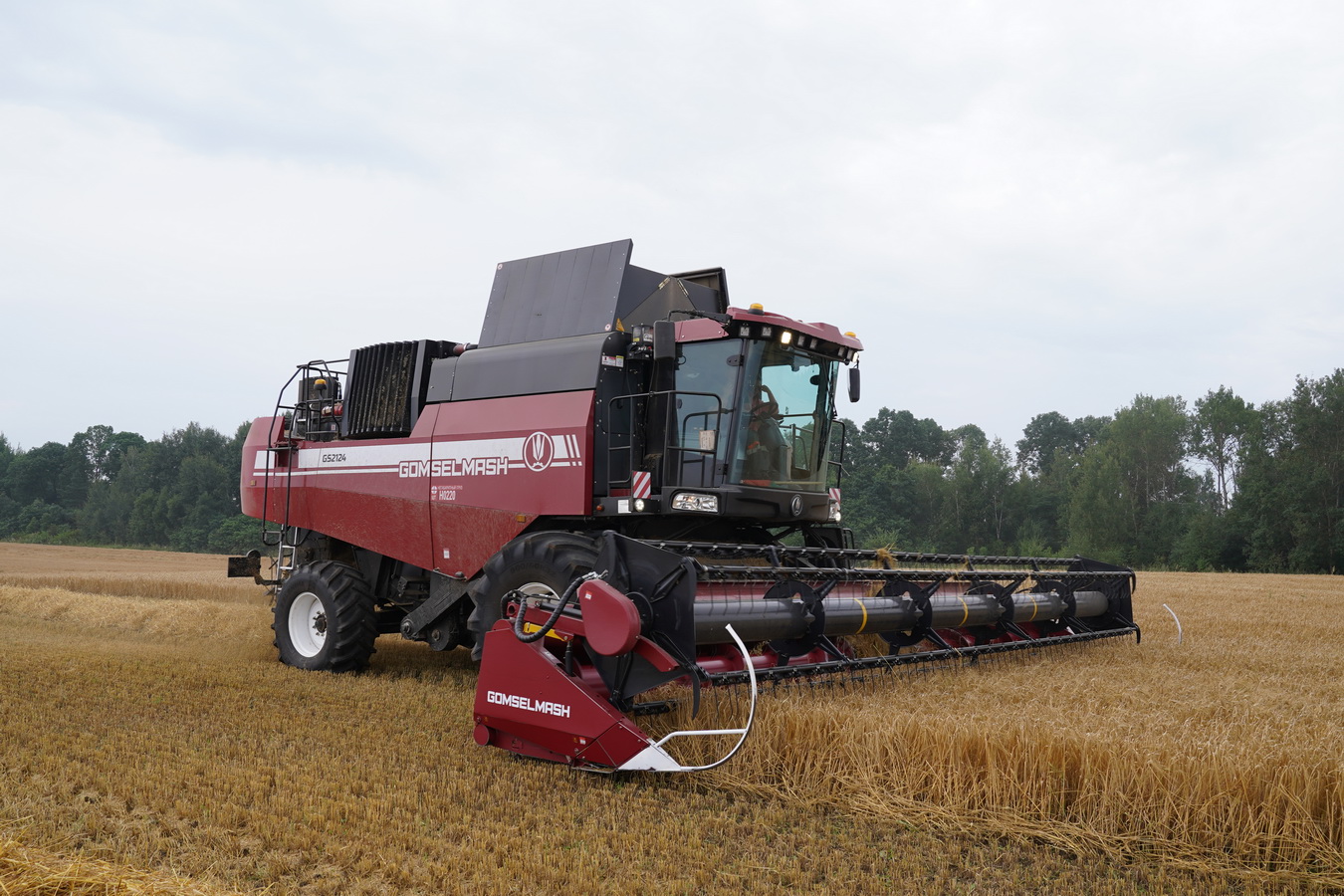

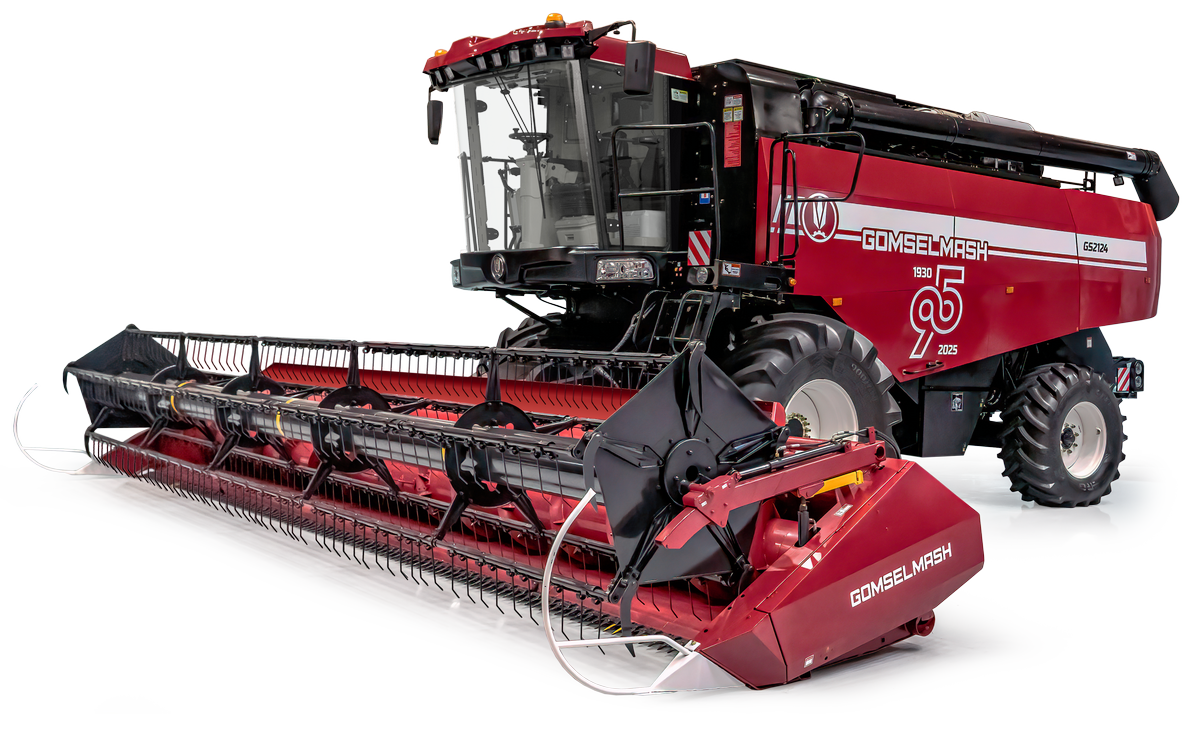

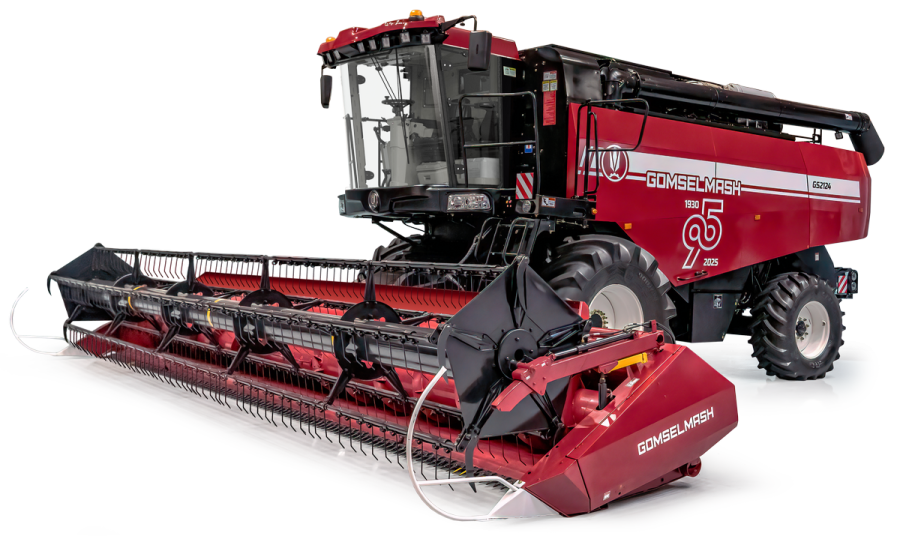

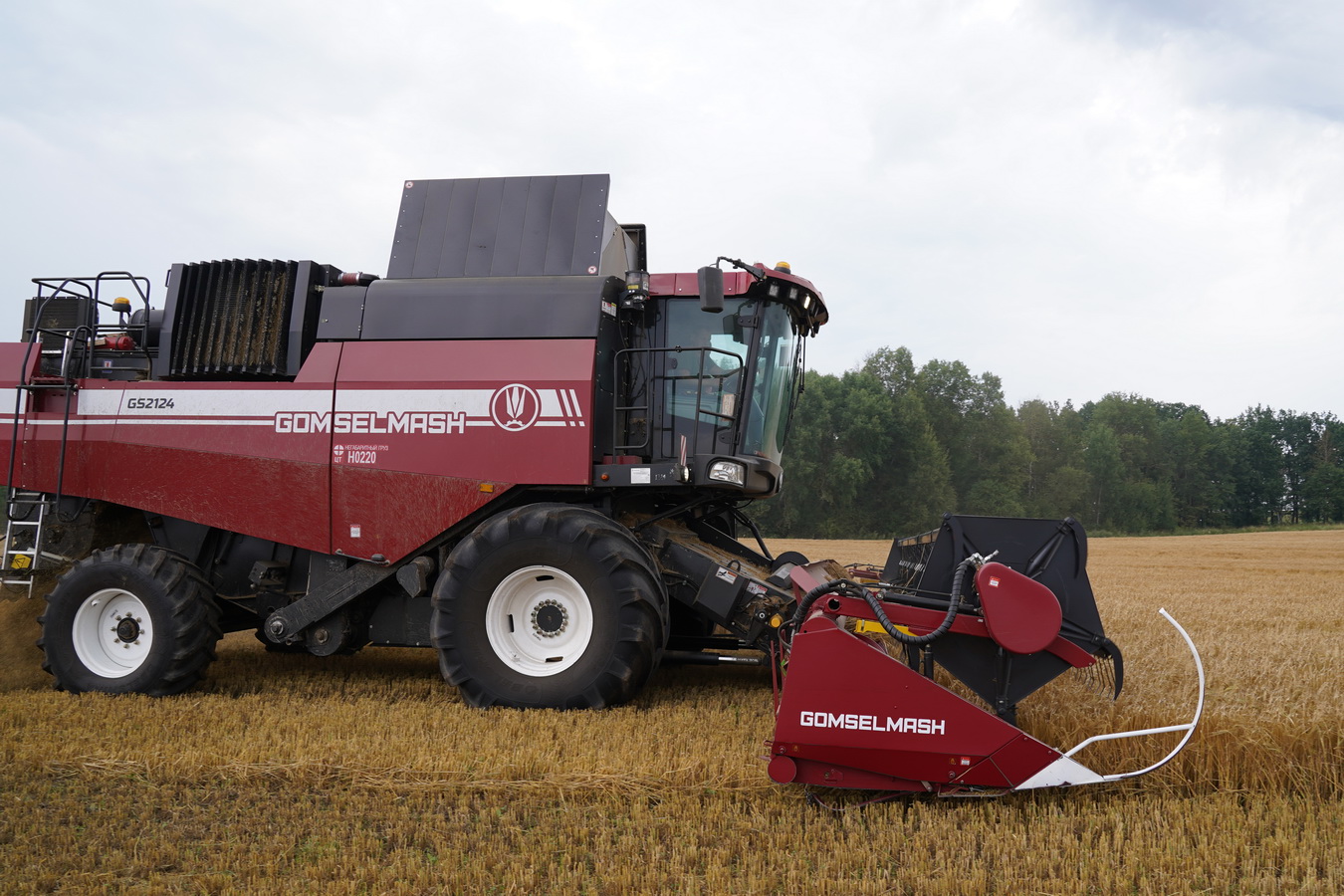

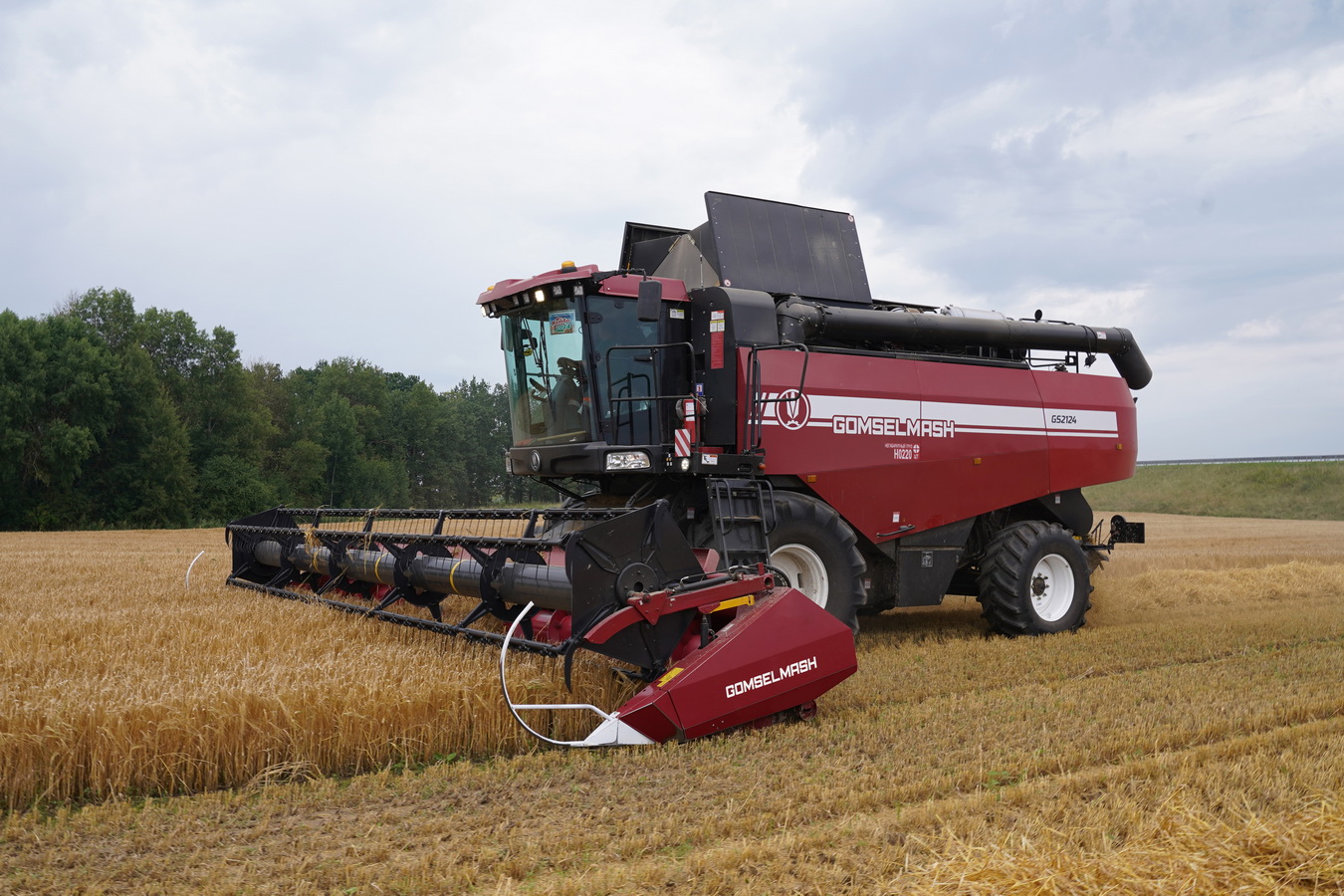

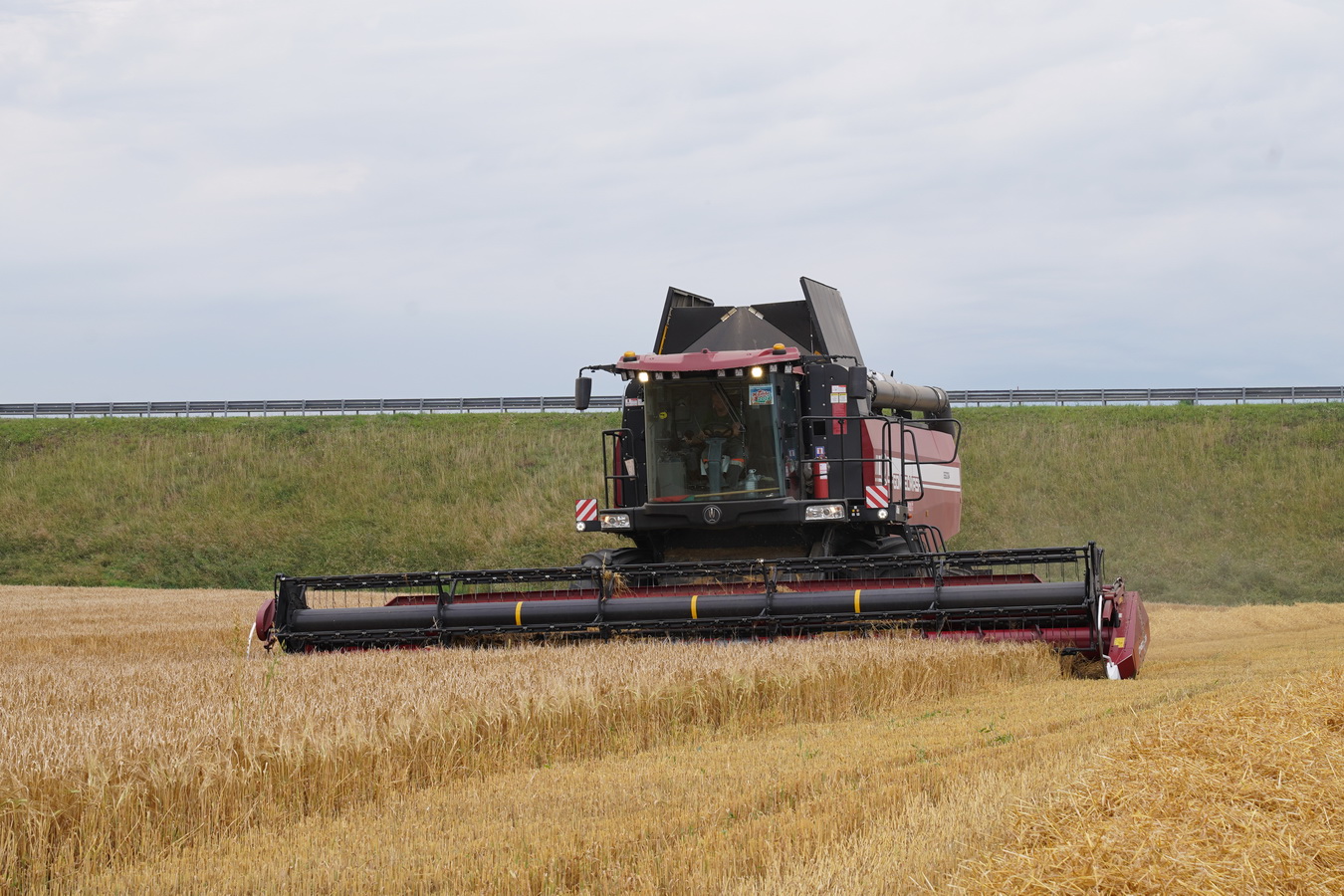

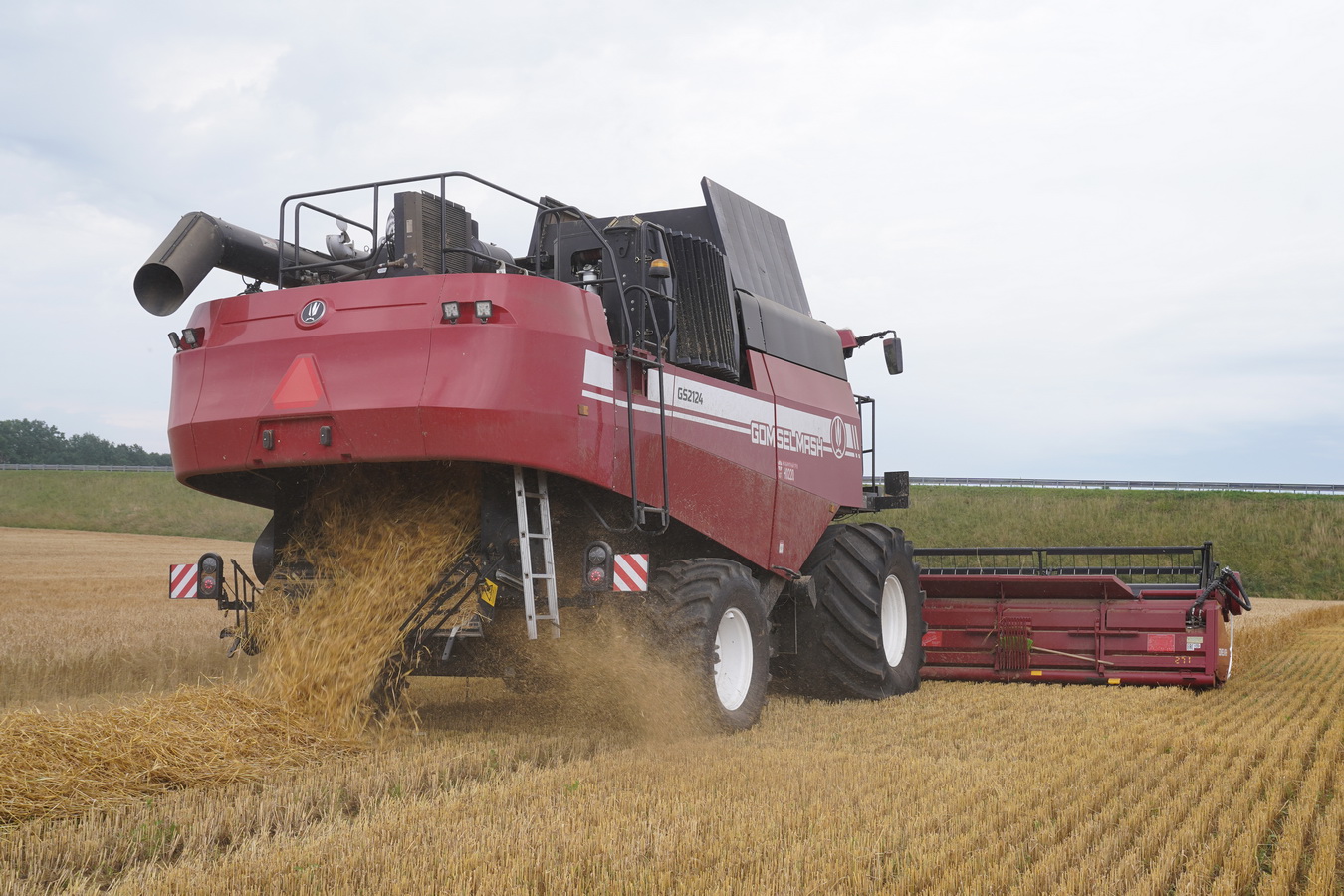

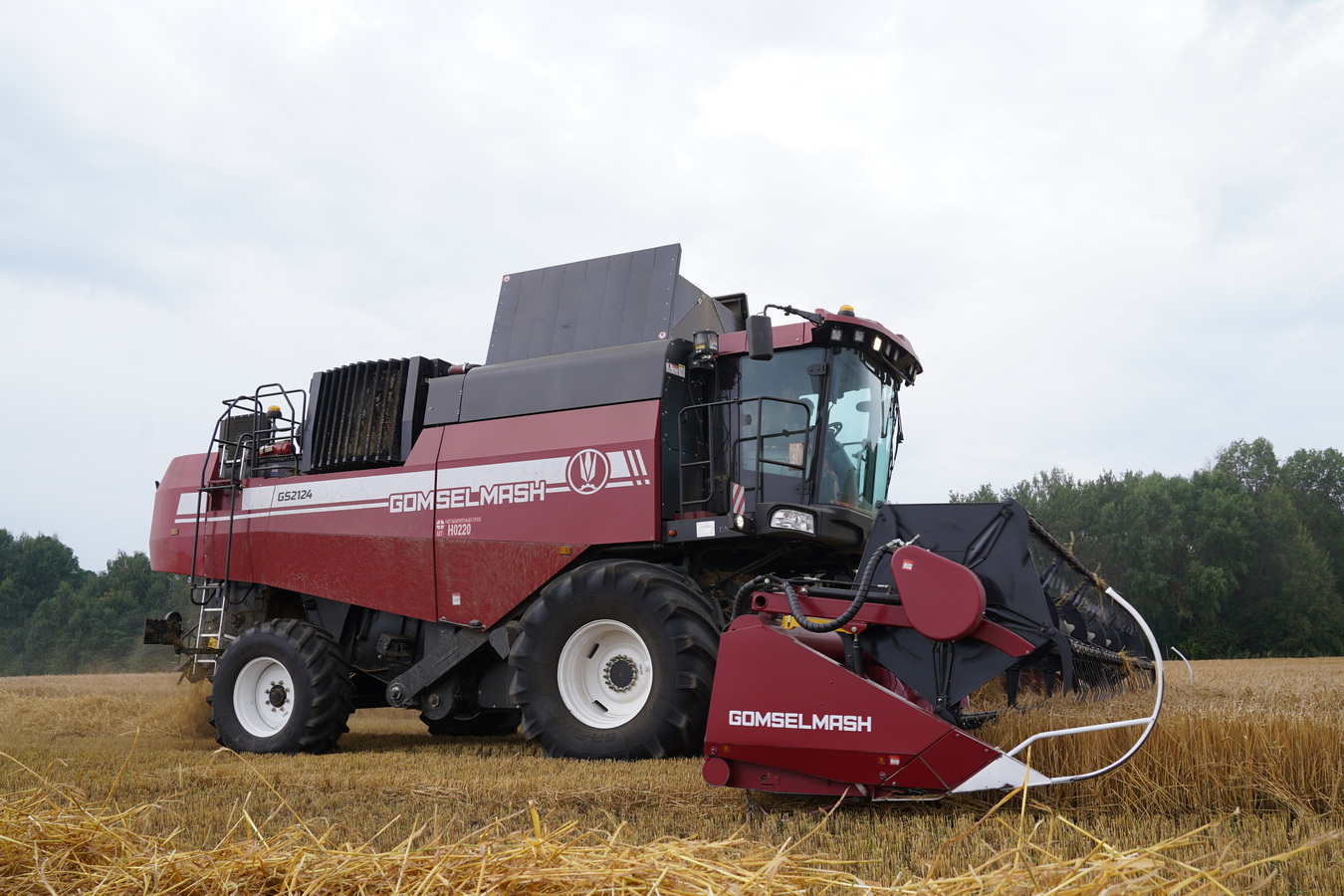

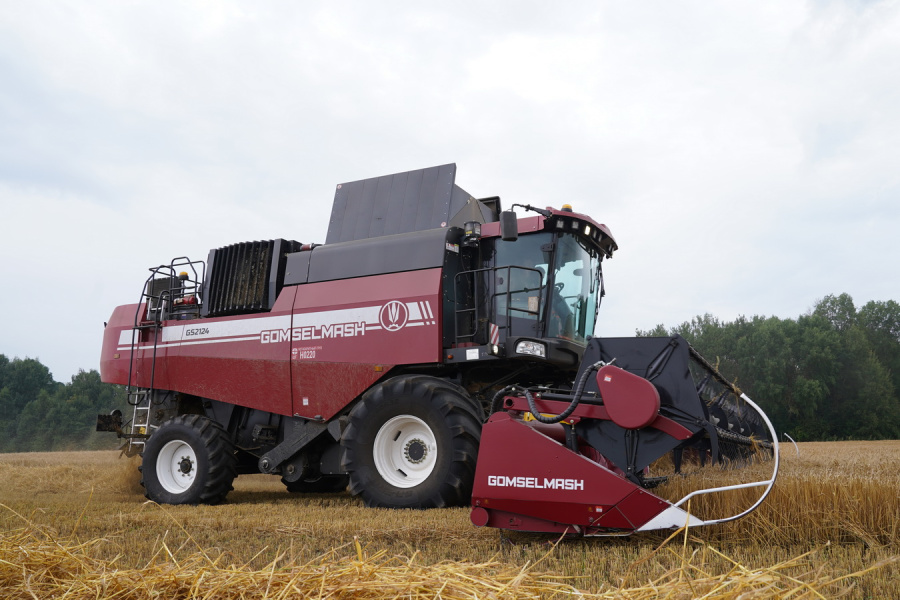

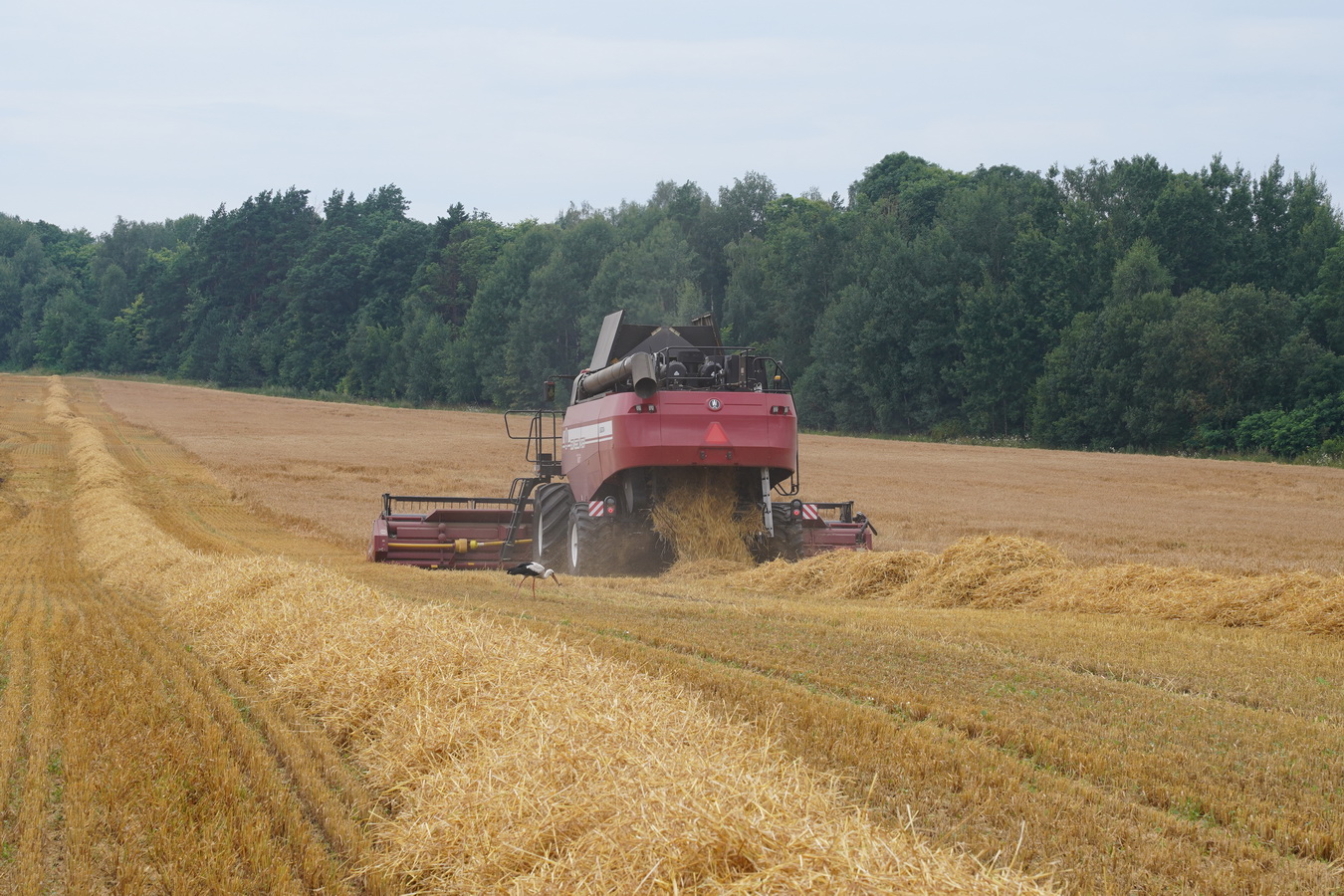

Grain harvesting combine GS2124

Grain harvesting combine GOMSELMASH GS2124 is the perfect combination of efficiency, comfort and customer wishes.

Choosing this combine model, you can be sure that you will get the best harvest performance with maximum comfort.

The new modern UNI CAB is equipped with everything necessary for comfortable operation of the combine, and a bonus is excellent visibility from the workplace.

The ergonomic U-PAD combine control panel with logically grouped controls helps you to carry out work operations in an intuitive way without unnecessary difficulties.

HARVEST OFFICE

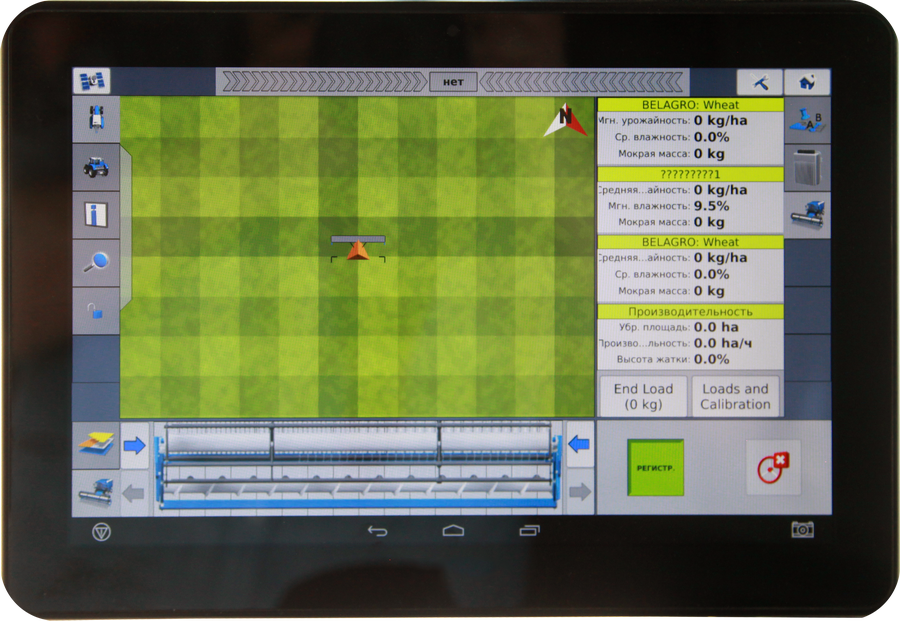

The information system of HARVEST OFFICE on-board computer with a color touch screen makes the work of the combine operator as efficient and comfortable as possible. The HARVEST OFFICE system helps to manage and provide real-time monitoring of the state of the main combine functional units, control the working parts, engine, transmission, the progress of work and service operations, and also informs about the presence of warning and emergency situations.

MULTI GRIP

The modern multifunctional joystick MULTI GRIP, integrated into the armrest, allows you to easily control the harvesting process. Also, to facilitate and increase the efficiency of your work, the combine has the CROP PRESET system that allows you to automatically tune the working parts of the combine (threshing drum speed, concave clearance, fan speed, upper and lower sieve gaps) when changing crops.

The powerful lighting system of working area LED VISION with ten headlights contributes to comfortable and efficient harvesting even at night. For the convenience of the operator, the CAM VISION system is installed in the cab, which provides a video overview of the grain unloading areas, the grain tank and the back area of the combine, which allows you to monitor these important processes without leaving the cab.

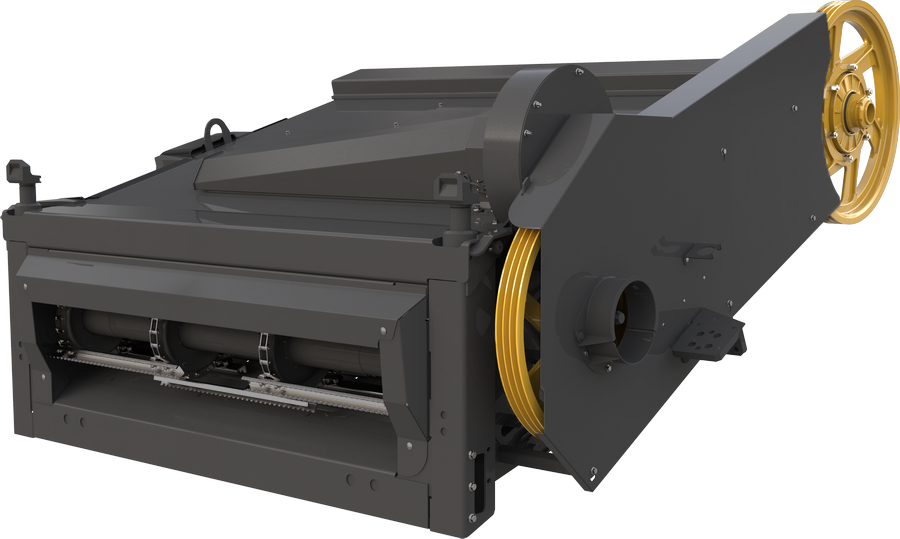

Thanks to one of the widest feeder housing with a working angle of 35°, you get a powerful and steady start of the grain mass. The ideal trajectory of the mass feed significantly reduces the power consumption of the combine without compromising its performance.

To work with the minimum downtime, and therefore with the maximum profit for you, in the most difficult period of harvesting, a chain-and-slat conveyor using high-quality IWIS alloy steel chains helps. Reversing the feeder housing conveyor is a must-have operation, especially in difficult harvesting conditions. The use of a hydraulic motor in the feeder housing design allows the conveyor to be reversed stepless, helping you to harvest in a short time, saving time on cleaning the feeder housing and adapter.

The DUST CONTROL dust removal system improves observability and visibility of the header from the cab, allowing you to load the full length of the header with greater accuracy and unlock the full power potential of GS2124.

For even more increasing productivity in the workplace, the GS2124 combine has the multi-functional coupling for adapters that reduces aggregation time, saves your efforts and promotes a quick start of harvesting.

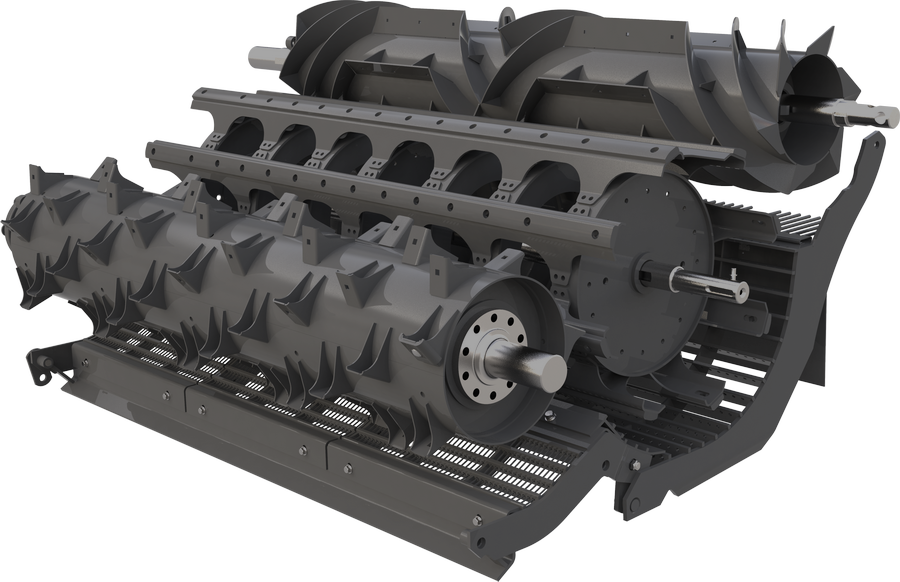

The basis of the GS2124 combine is a double-drum threshing system and rotary separation, which has repeatedly proven its effectiveness on any agricultural background and harvested crops, which significantly increase the productivity of your combine without damaging the grain and increasing energy consumption.

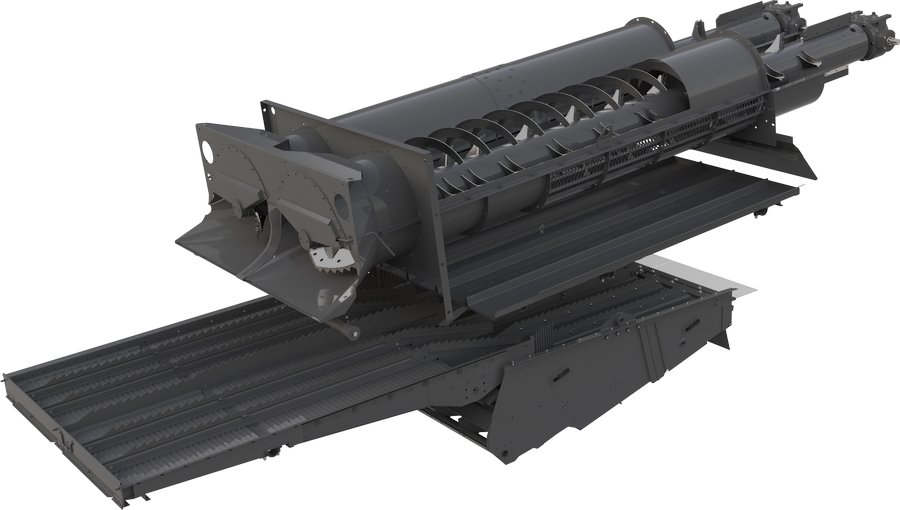

The perfect combination of tangential threshing and axial separation is the secret of the success of the HYBRID-FLOW system. The HYBRID-FLOW system is a proven double-drum threshing scheme with a uniform acceleration of the flow of the grain mass before it enters on the threshing drum, which ensures a quick and gentle threshing of your grain. Drum speeds can be easily adapted to different crops and harvesting conditions. The rotational speed is infinitely adjustable in the range from 518 to 1152 rpm.

As well as two high-performance straw separator rotors with the diameter of 450 mm and the length of 4200 mm, which rotate in opposite directions, thereby creating a large centrifugal force, provide efficient, fast and gentle separation of residual grain so that you can get the maximum yield.

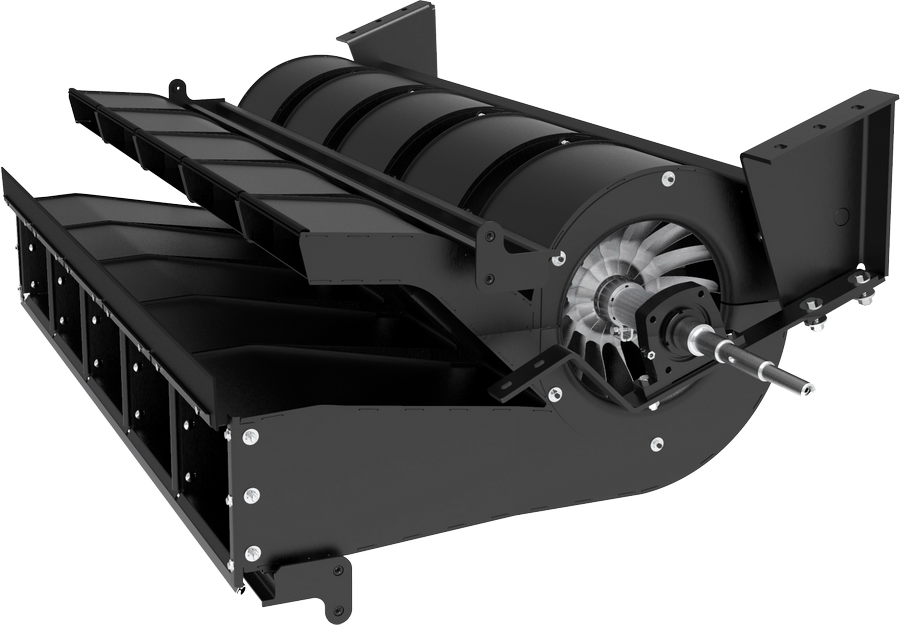

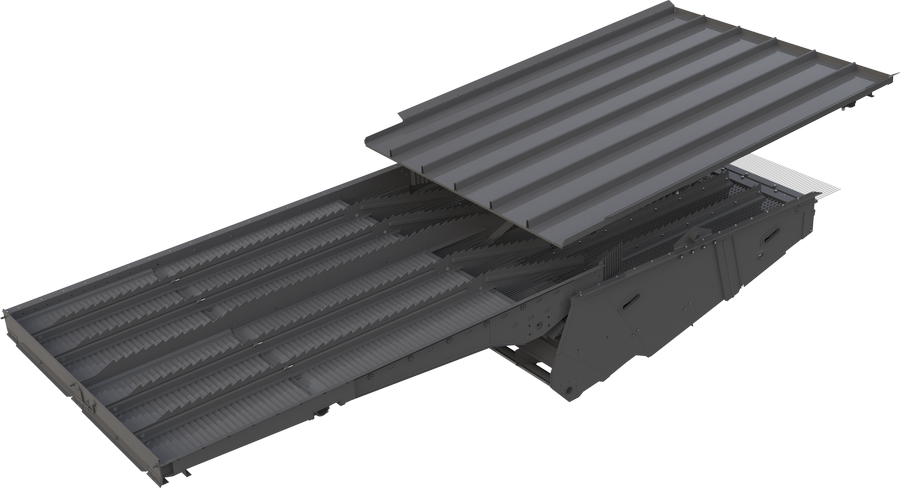

A three-stage cleaning system with increased productivity with the area of 5.8 m² with the powerful five-section cleaning fan 5D AIR FAN with an equable spreading of air flow over the sieves will satisfy your highest requirements for the purity of the obtained grain.

Due to the high productivity of the combine, the complexity of cleaning the grain mass also increases. Thanks to 5D AIR FAN, cleaning a large flow of grain mass becomes a simple and effective process.

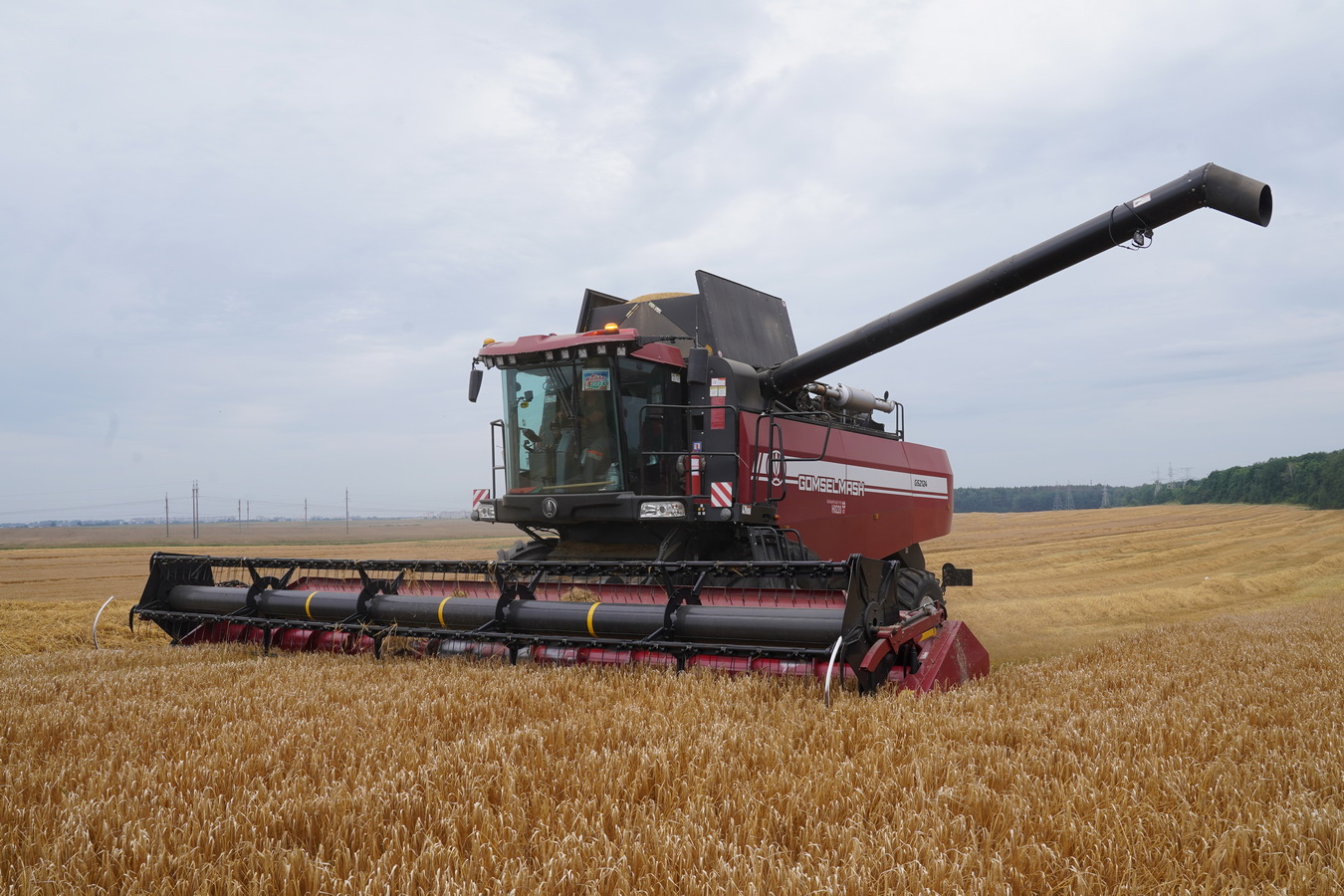

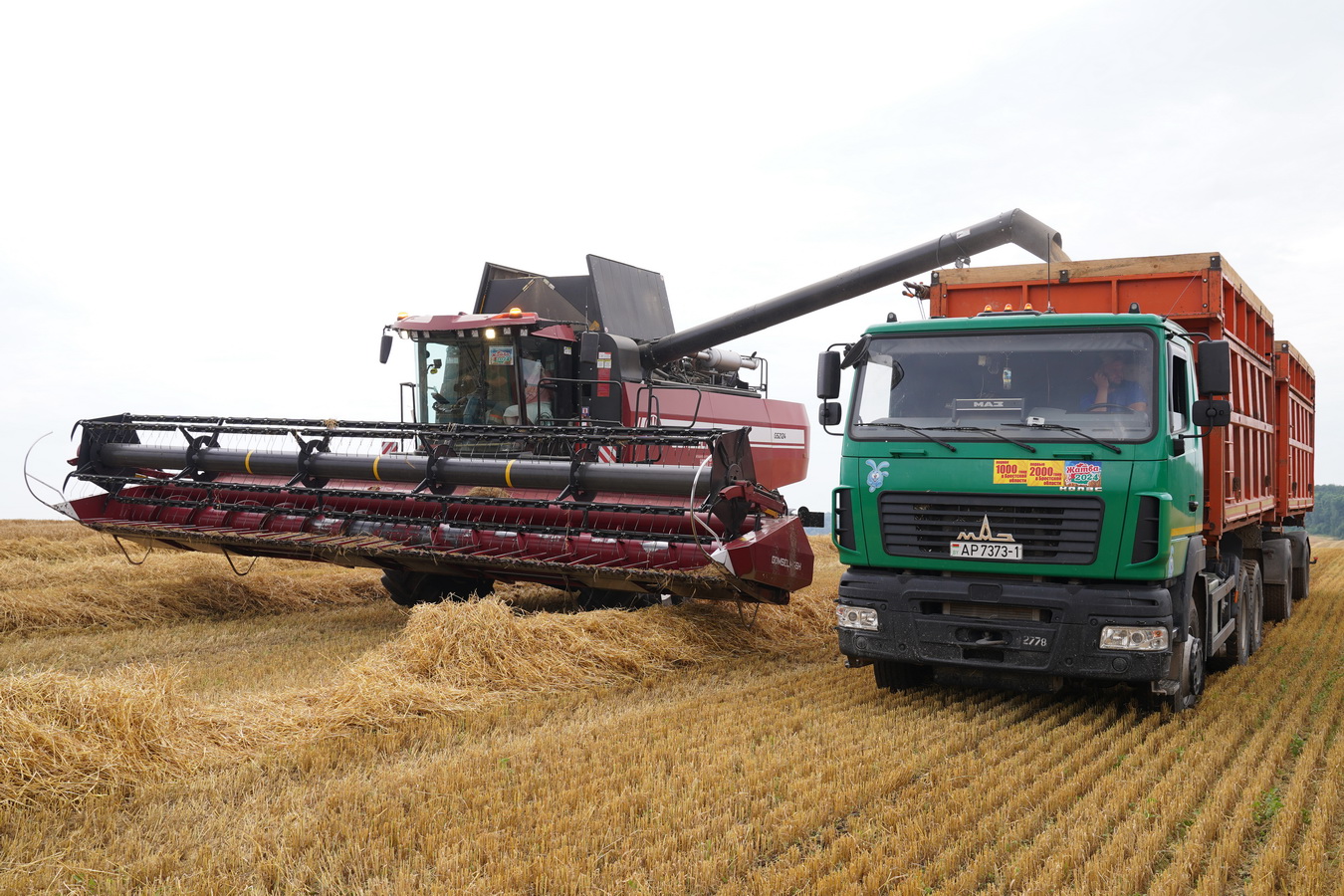

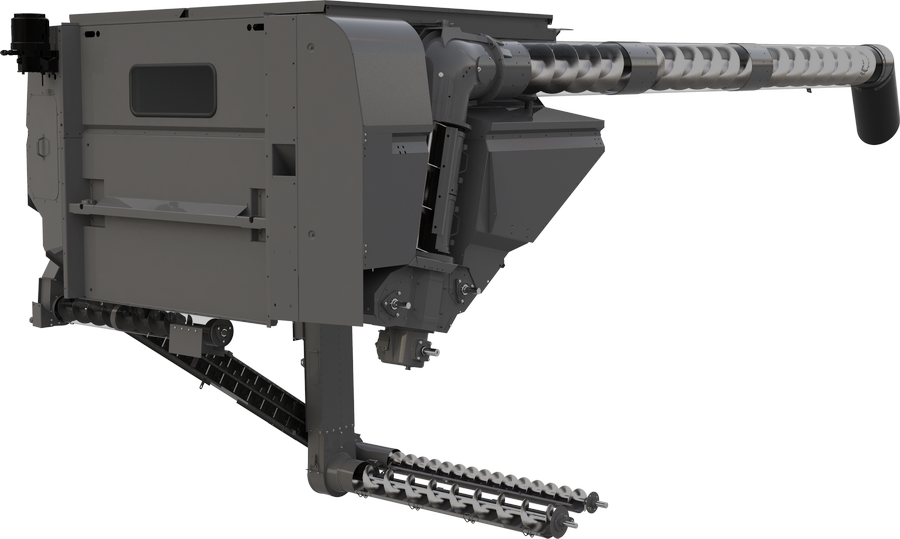

Grain tank unloading is an essential part of harvesting. This process occurs on average up to 30 times during the day, which can take a lot of your time. The optimal ratio of the characteristics of the GS2124 grain tank with a volume of 10 000 liters and an unloading speed of at least 100 l/s contributes to unloading in the shortest possible time, saving your precious time.

In order to save your money, the combine harvester is equipped with the PART-UNLOAD and OPTI-UNLOAD systems. The PART-UNLOAD system, if necessary, allows you to immediately stop the unloading process, which minimizes grain losses in an unforeseen situation. The OPTI-UNLOAD system makes it possible to unload grain with the powered down drive of the thresher. During the harvesting season, this function saves a large amount of your fuel and prolongs the life of the threshing and separating device of the combine.

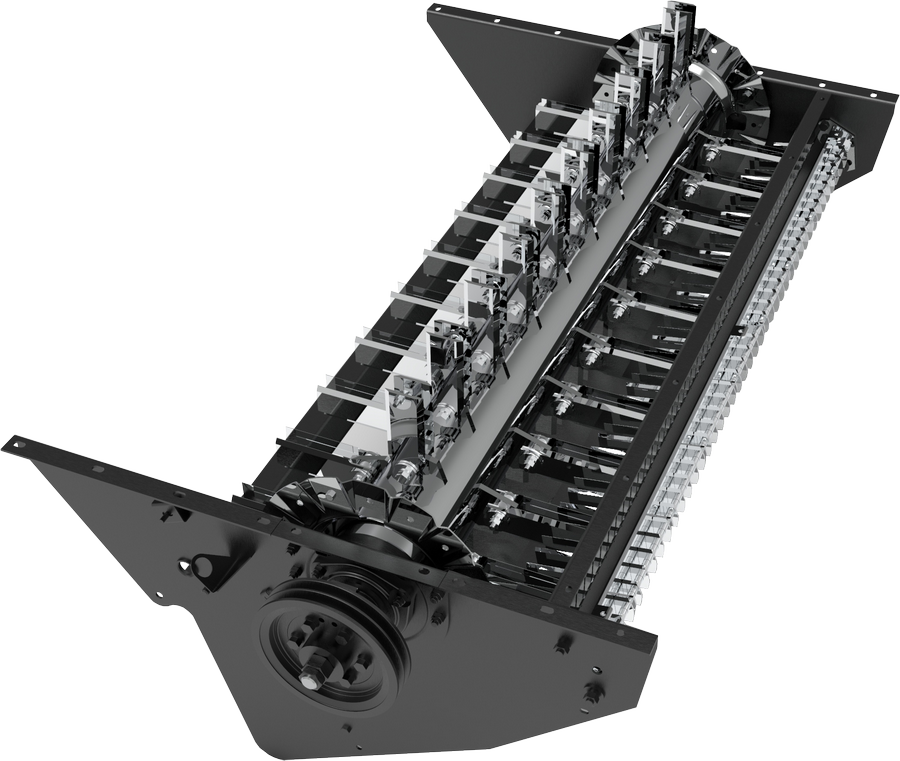

OPTI-CUT 92

92 knives are installed on the straw chopper, which carry out high-quality and fine chopping, and then spread the non-grain part of the crop. The obtained material easily decomposes and gives nutritional properties to the soil, thereby increasing the yield of your fields in the following seasons.

UNI-SPREADER

To maximize crop remains utilization, GS2124 is equipped with the double disc chaff spreader. Adjusting the speed of the double disc chaff spreader from 400 to 800 rpm helps to successfully spread the chaff of any cereal crop without affecting the air flow of the cleaning.

Reduction gear

When you need to harvest crops that are easily damaged, such as corn, sunflower and others, use the reduction gear, which is included in basic configuration on the GS2124 combine.

Automatic lubrication

The automatic centralized lubrication system installed on the GS2124 combine allows you to make efficient use of your working time, reducing downtime and maintenance time.

ARC-SYSTEM

Also, in order to save your precious time, the GS2124 combine has an innovative active radiator cleaning system. The radiator is cleaned by reverse airflow generated by a reversible fan that blows out all the dirt from an air inlet zone, which increases the performance of your combine and simplifies its maintenance.

The GS2124 combine is equipped with electronic precision farming systems to produce more grain at a lower cost.

The main goals of precision farming are:

• saving means of production
• saving of working time of equipment and personnel
• full use of yield potential
• product quality improvement
• increase in profits of agricultural organizations due to increased yields and reduced manufacturing costs.

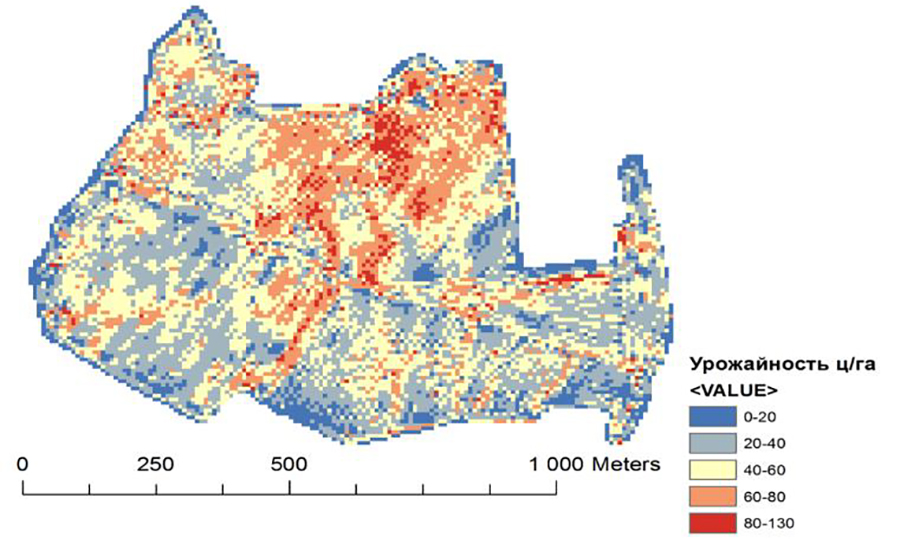

Each field has a different type of soil, a different nutrient composition and a different amount of moisture. Yield maps are used to interpret these data to analyze high and low yield zones in each field. Yield data is the foundation of precision farming and allows you to make informed decisions for future seasons.

The combines also have the AUTOPILOT function, with which you achieve the maximum accuracy of automatic control, depending on the type of differentiated amendments.

Obtained result:

• performance improvement up to 10-30%
• increase of production by reducing overlaps
• automatic full turn
• saving fuel and lubricants.

Whatever crop you grow, you can harvest it with the GS2124 combine using our adapters.

The GS2124 half-track combine is suitable for working in difficult conditions: with steady rains, poor flotation and low soil bearing capacity.

You can get more detailed information about prices, terms of purchase and deliveries of combines from a dealer in your region.
