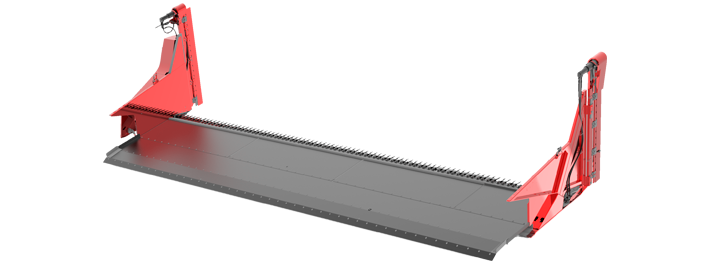

Rapessed cutterbar table
Working width, m: 4.0 - 9.2
Rapeseed cutterbar table is designed for installation on grain headers with a working width of 4, 5, 6, 7 and 9.2 m. The use of rapeseed tables can reduce seed loss by a third during harvesting.
The rapeseed cutterbar table is designed in such a way as to minimize losses and at the same time ensure reliability and comfort in operation. Active separator of side cutting cuts apart complex entwinement of crops, preventing fall of seeds on the ground.
The devices are specially designed for professional harvesting of rapeseeds on plain fields with incline up to 8° and provide a cutting height of no more than 55 mm.
The efficiency of the rapeseed table and the quality of its components make it possible to recoup cost in a short time and increase the harvest with minimal losses.
| Model | PR-4 | PR-5 | PR-6 | PR-7 | PR-9 | |
| Header aggregation | GS8 | GS8 | GS8 GS10 GS12A1 |
GS8 GS10 GS12A1 GS3219 GH800 |
GS12A1 GS3219 GH800 GS2124 |
|
| Working width, m | 4.0 | 5.0 | 6.0 | 7.0 | 9.2 | |
| Productivity for 1 hour of shift time, ha | 1.2 | 1.3 | 1.4 | 1.5 | 1.7 | |
| Cutterbar type | finger | |||||
| Type of cutterbar active divider | fingerless | |||||
| Minimum cut height, mmм | 55 | |||||
| Operating speed, km/h | 6 | |||||
| Road speed, km/h | 20 | |||||
| Overall dimensions and weight of header in working position: | ||||||
| Length, mm | 1 800 | 1 800 | 1 800 | 1 800 | 1 800 | |
| Width, mm | 4 430 | 5 500 | 6 500 | 7 500 | 9 700 | |
| Height, mm | 1 600 | 1 600 | 1 600 | 1 600 | 1 550 | |
| Weight, kg | 450 | 460 | 540 | 620 | 720 | |
