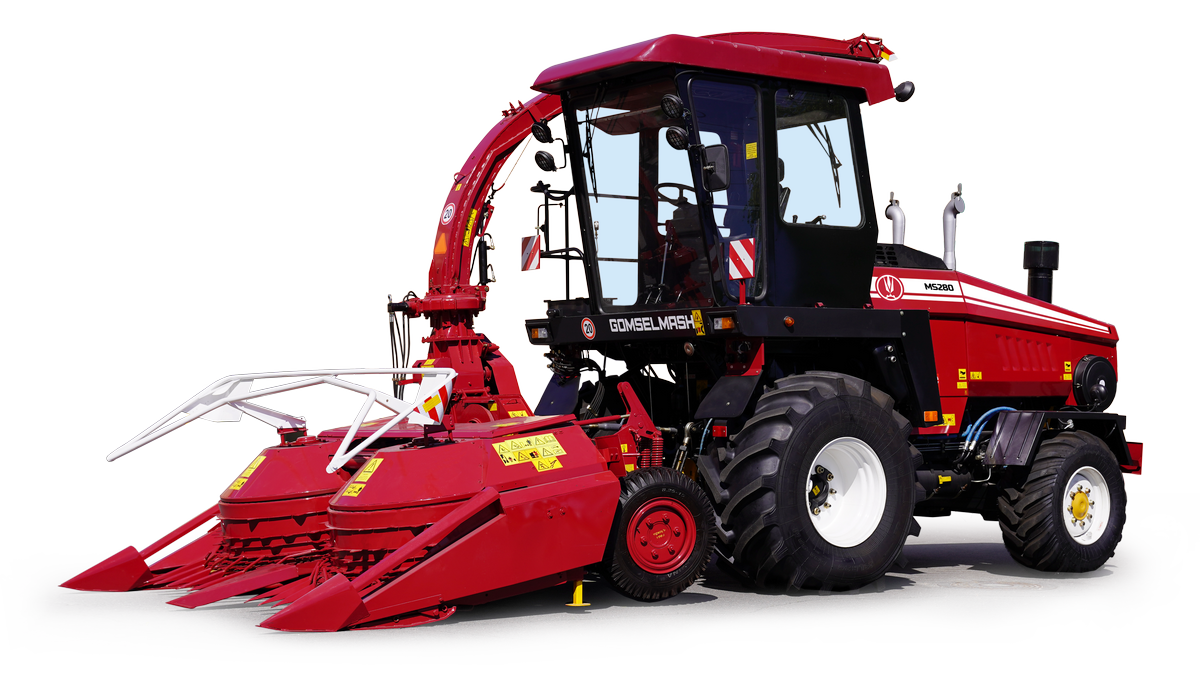

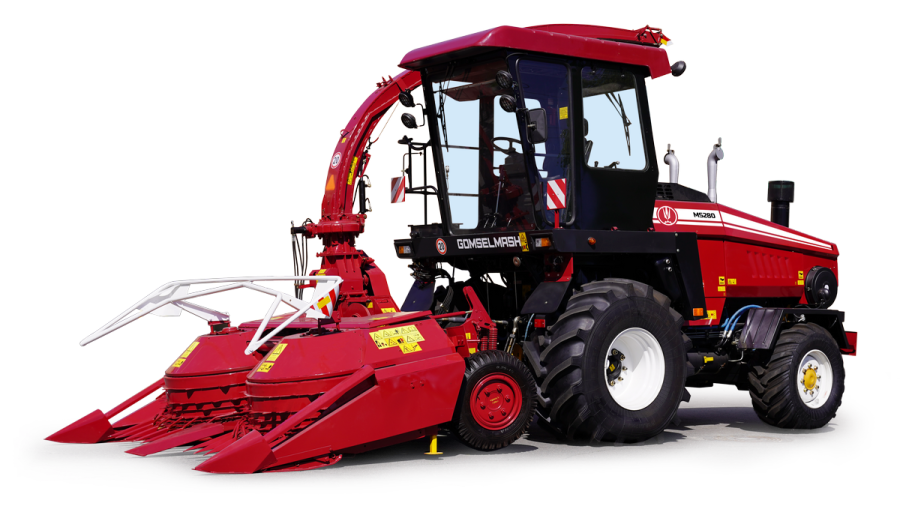

Forage harvesting complex FS3000 (K-G-6)
Engine: 290 h.p.
Width of chopping cylinder: 414 mm
Diameter of chopping cylinder: 1100 mm
Length of cut: 5 - 48 mm
The FS3000 forage harvesting complex is a multifunctional assistant for efficient forage harvesting with small production volumes.

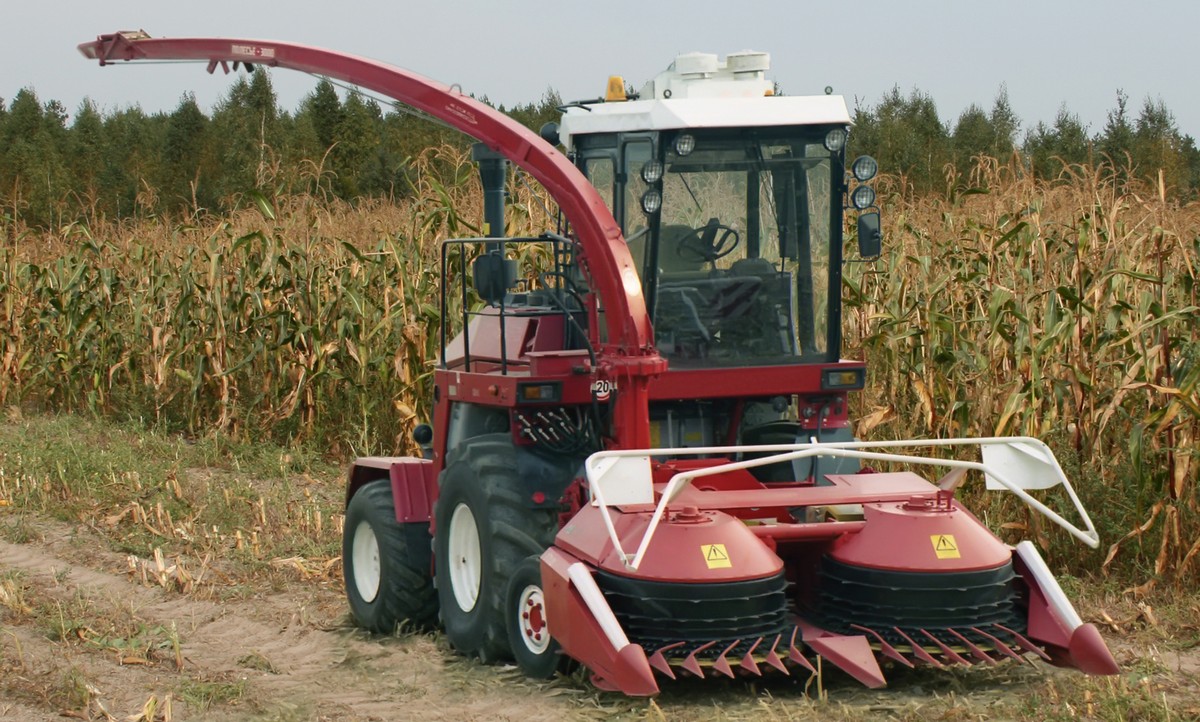

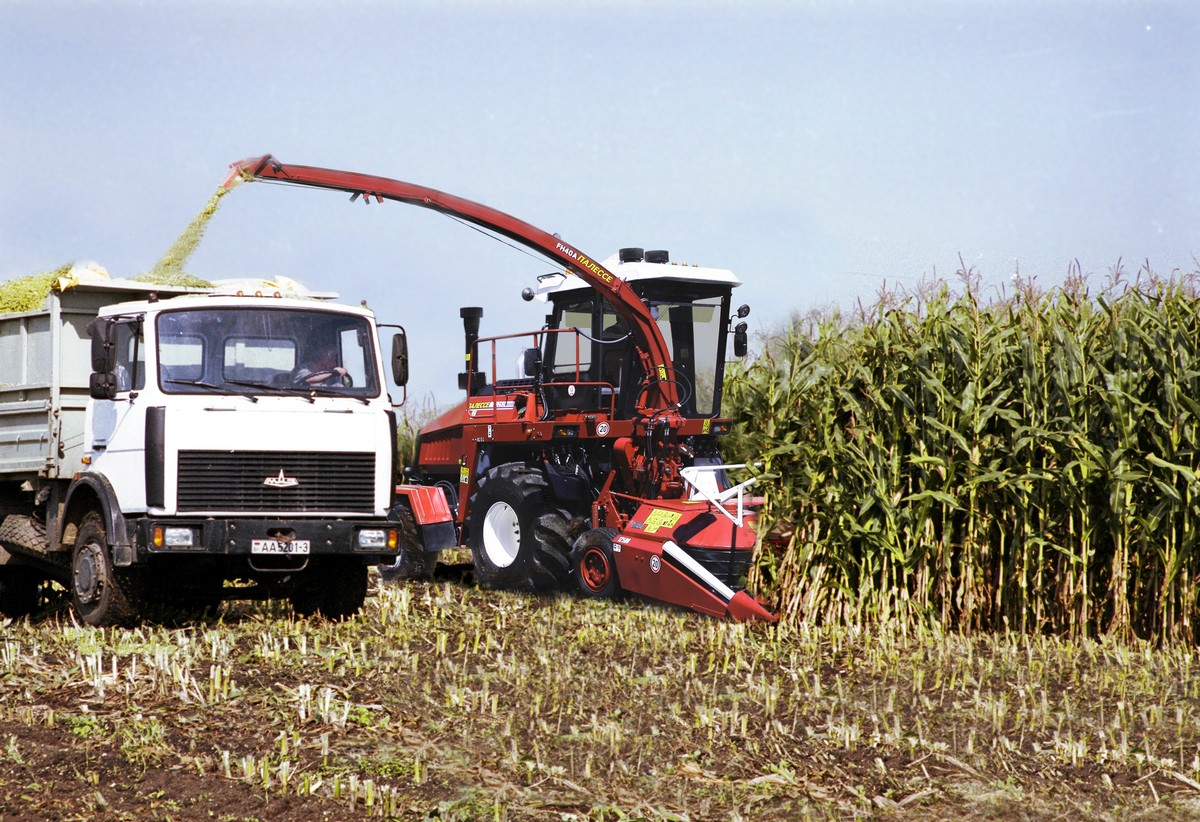

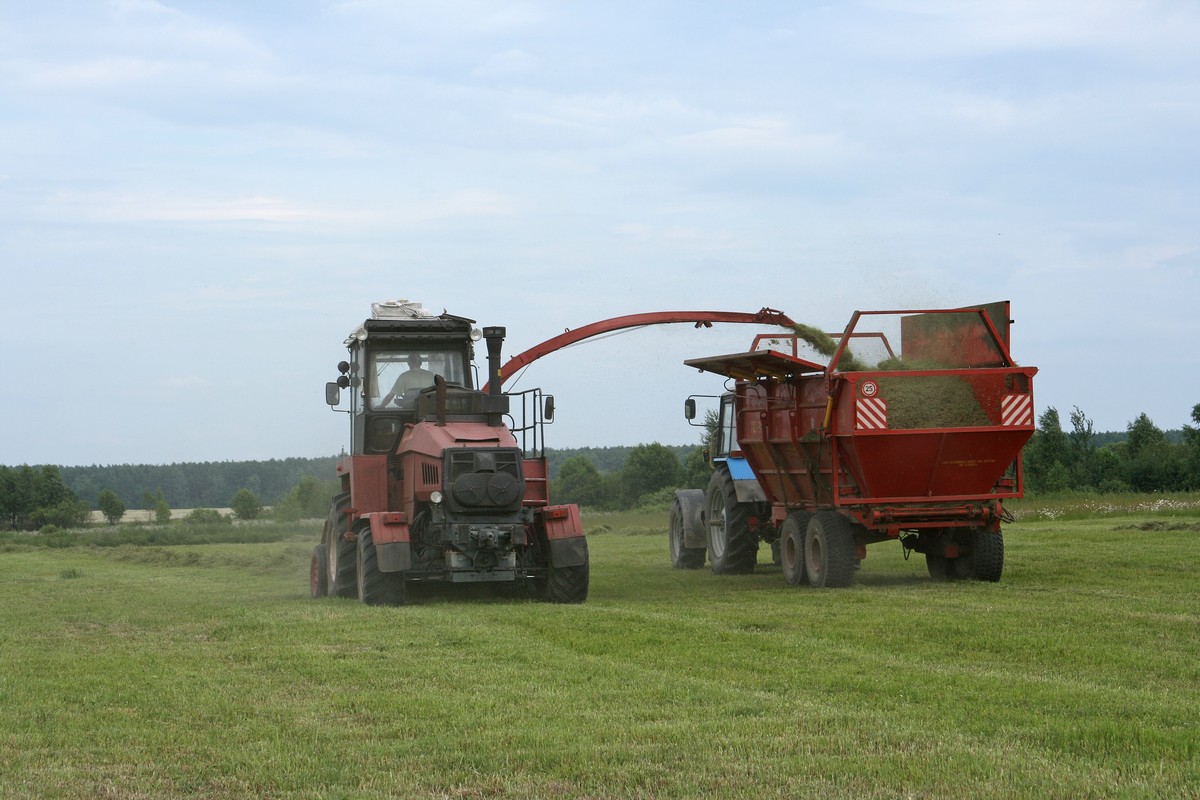

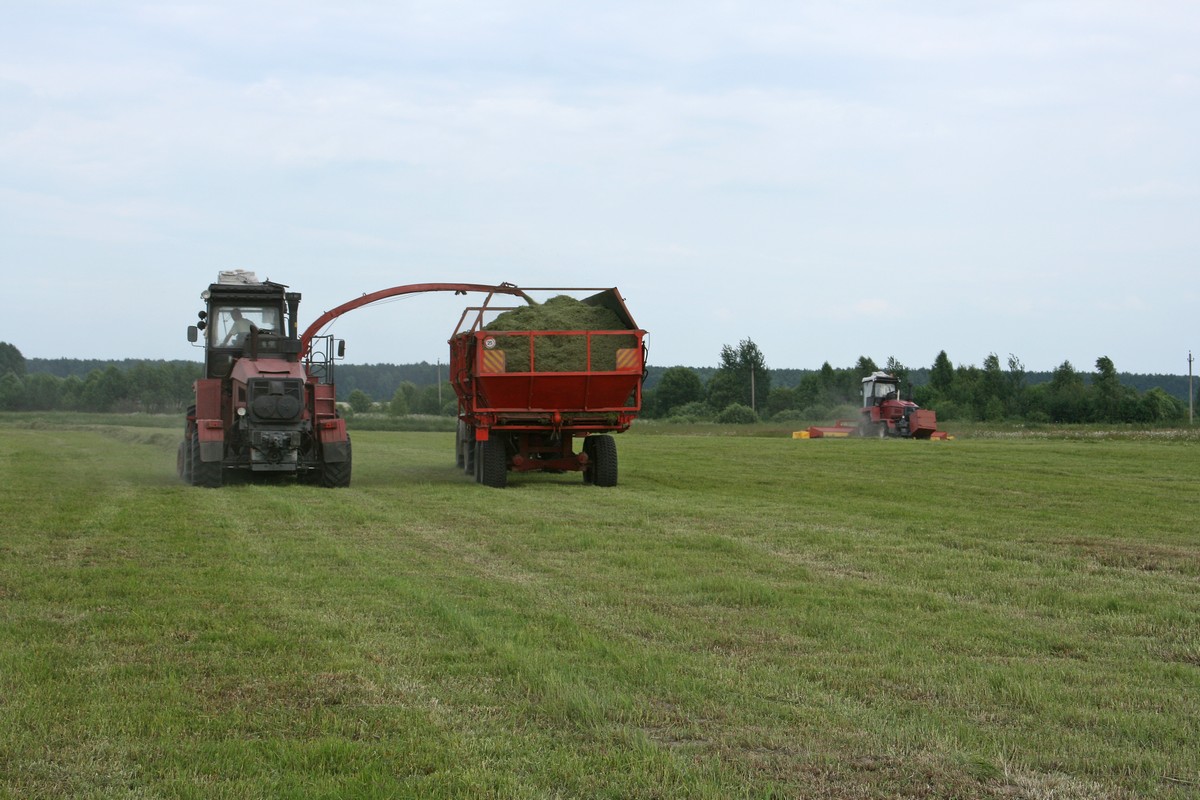

The FS3000 complex is made for mowing corn, sorghum, sunflower and other tall-stalked crops, mowing green crops and picking up dried, seeded and natural grasses from swaths with chopping and loading into a vehicle. When preparing silage, haylage, grass harvesting the FS3000 matches the level of self-propelled forage harvesters in terms of productivity and quality of harvested feed.
The FS3000 forage harvesting complex consists of self-propelled machine MS280 and a semi-mounted forage harvester aggregated with a set of easily replaceable adapters KPK-3000: a maize header, a pick-up and a header for grass.

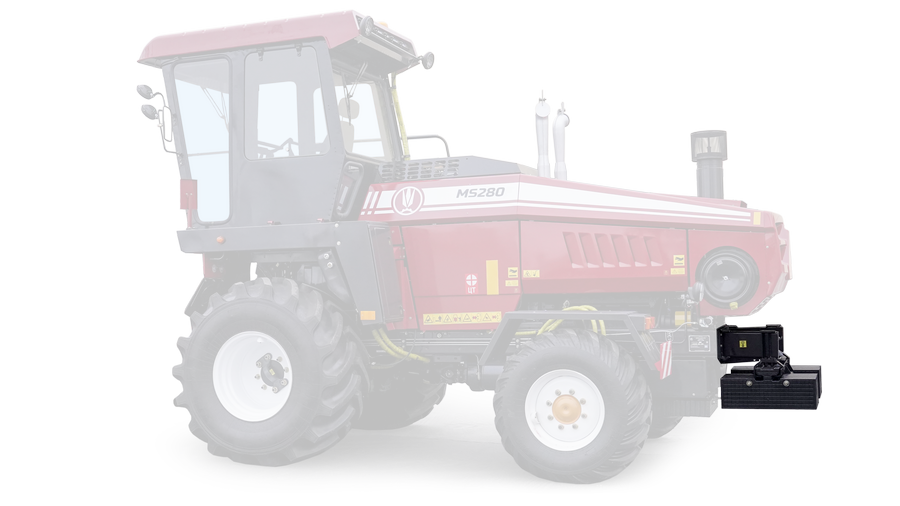

The MS280 is a universal self-propelled agricultural machine with an attachment for aggregating with various types of equipment. The manufactured models and modifications of the machine provide you with a wide range of choices: each client can purchase the FS3000 complex in the configuration that suits the existing conditions of forage harvesting in an agricultural organization most of all.
All-wheel drive

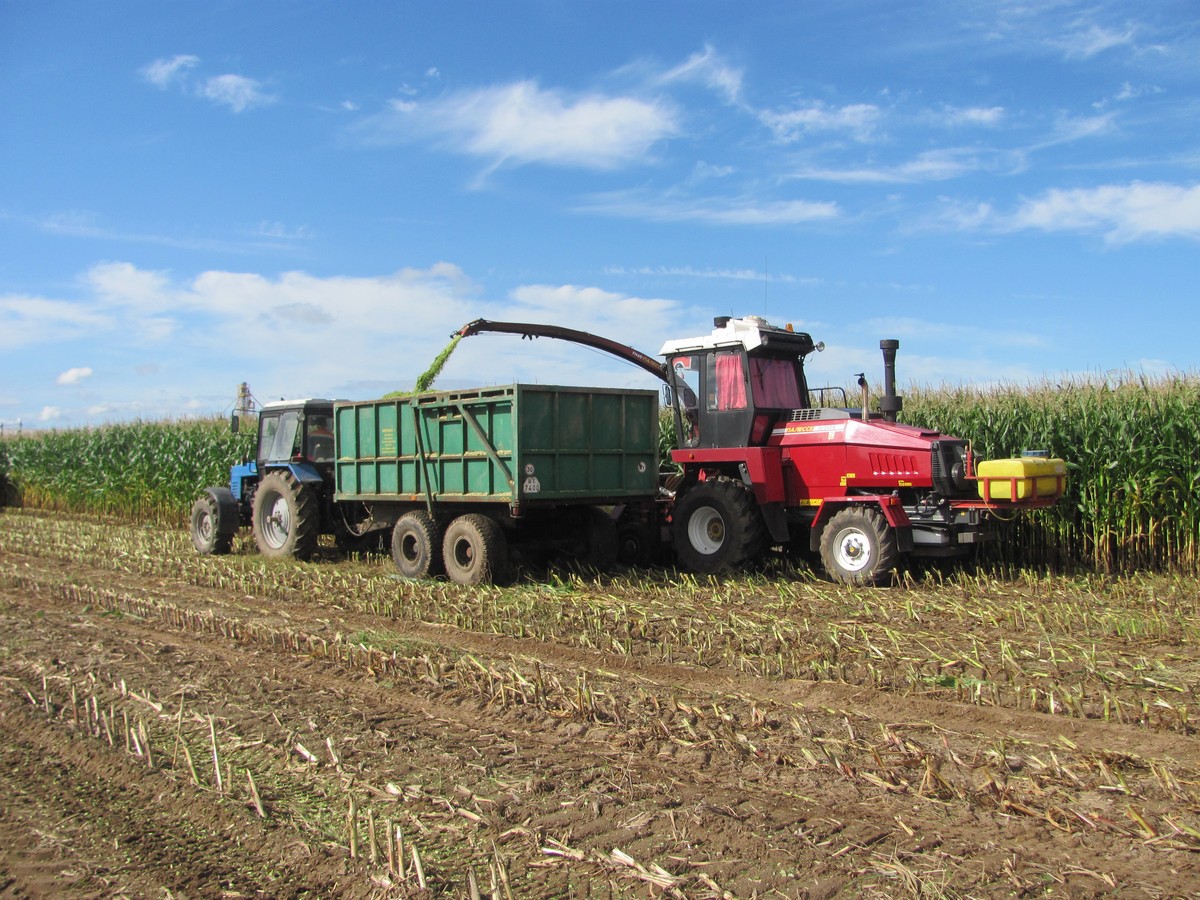

The FS3000, combined with the MS280 machine with two drive axles, ensures forage harvesting in difficult conditions: on heavy soils, in conditions of prolonged rains, during autumn harvesting of waxy ripe corn. Provides increased maneuverability and excellent pulling ability.
Single drive axle
The combination of the FS3000 with the MS280, equipped with a single drive axle, stands out by simpler design, making it more accessible to the customer. Fully justifies itself in conditions of medium and light soils.

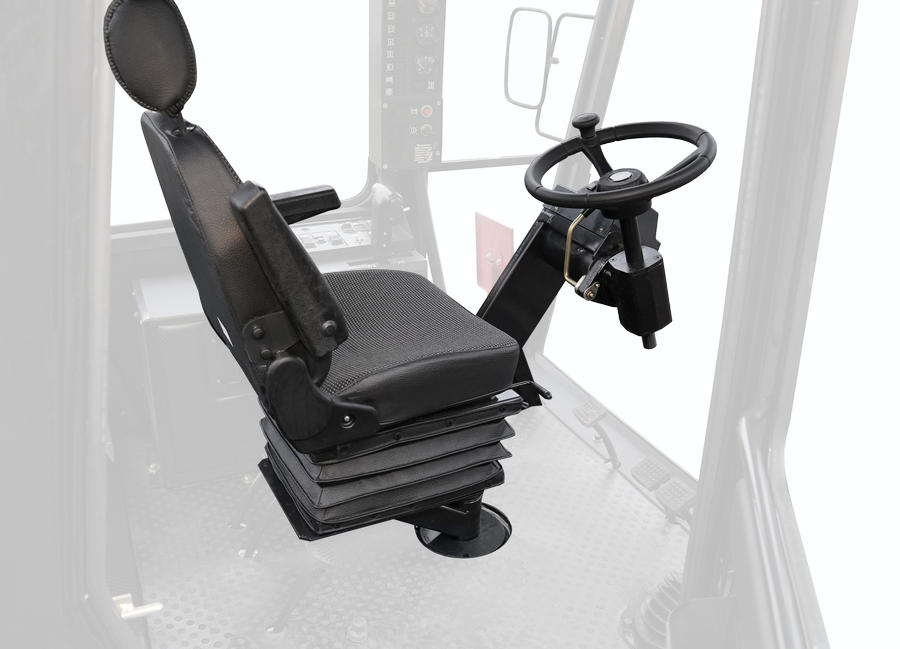

The MS280 has a frame design. This made it possible to place the following units on the frame: engine, cabin with working parts, rear PTO drive, leading and drive axles, attachment, hydraulic system of the running gear, hydraulic system of the steering and power hydraulic cylinders, pneumatic and electrical equipment.
To drive aggregated implements in a self-propelled machine, a rear power take-off is used. Power is transferred from the engine to the PTO using a switchable multi V-belt transmission, a single-stage gearbox and a cardan transmission. The MS280 stands out by its ability to transmit up to 100% of the power to the working parts of the mounted machines attached to it through the PTO. The powerful attachment makes it possible to raise and lower the mounted units easily and quickly, without wasting time on harvesting, during turning at the field margin and moving to another field.
The KPK-3000 harvester, part of the FS3000 complex, is a semi-mounted device designed for efficient forage harvesting. It is available in several modifications: equipped with a corn cracker of active type for effective grain grinding in the waxy ripeness phase, a modification with a device for adding additives, and a modification without a corn cracker for work where shredding is not required.

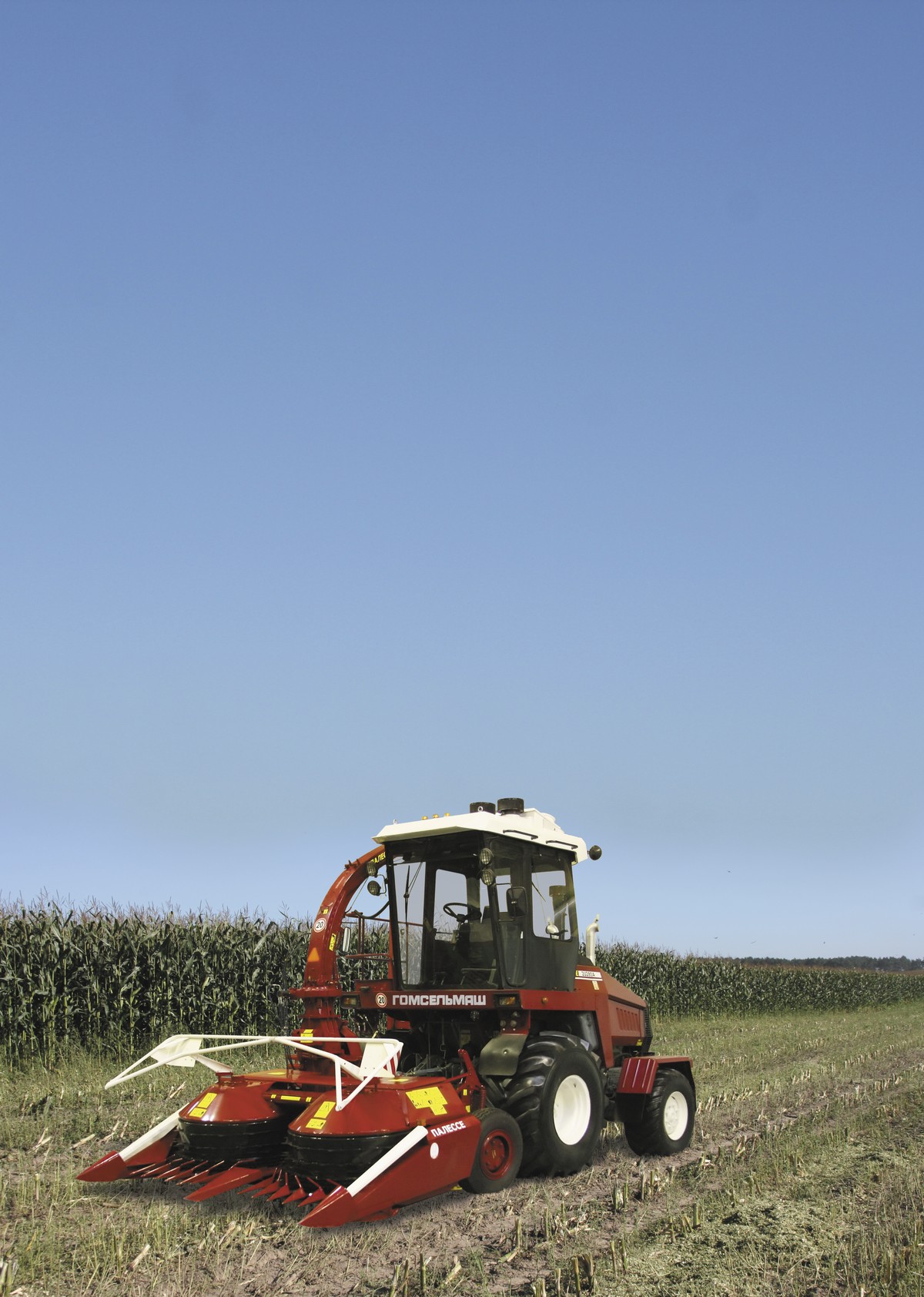

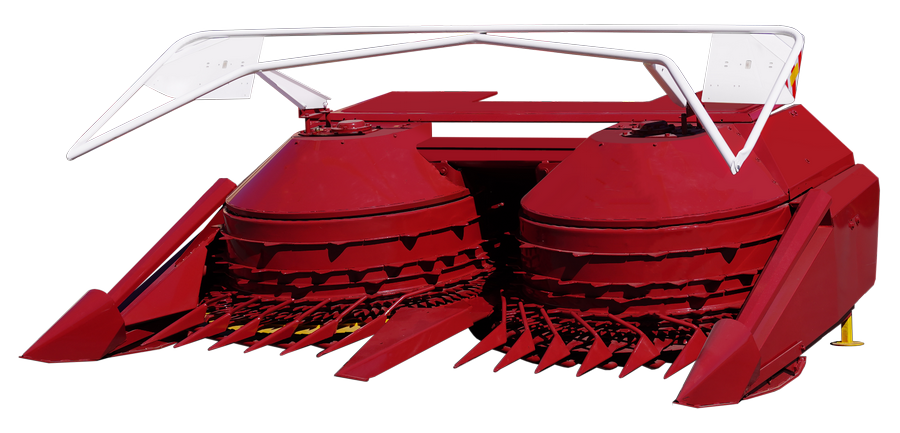

Maize header

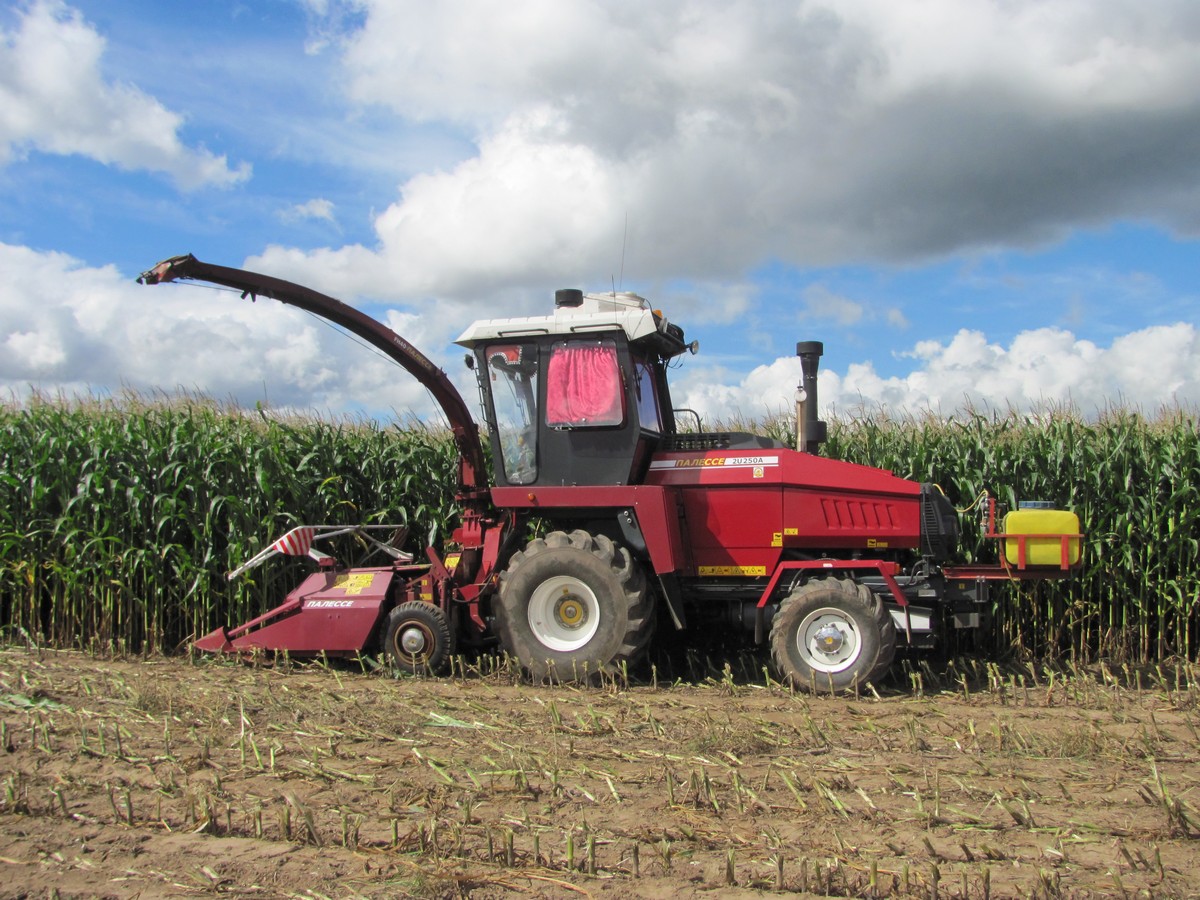

Working width of 3.0 meters. Capable of harvesting maize of any height and yield. Stalks are conveyed into the feeding unit with their lower part, preventing the loss of cobs.

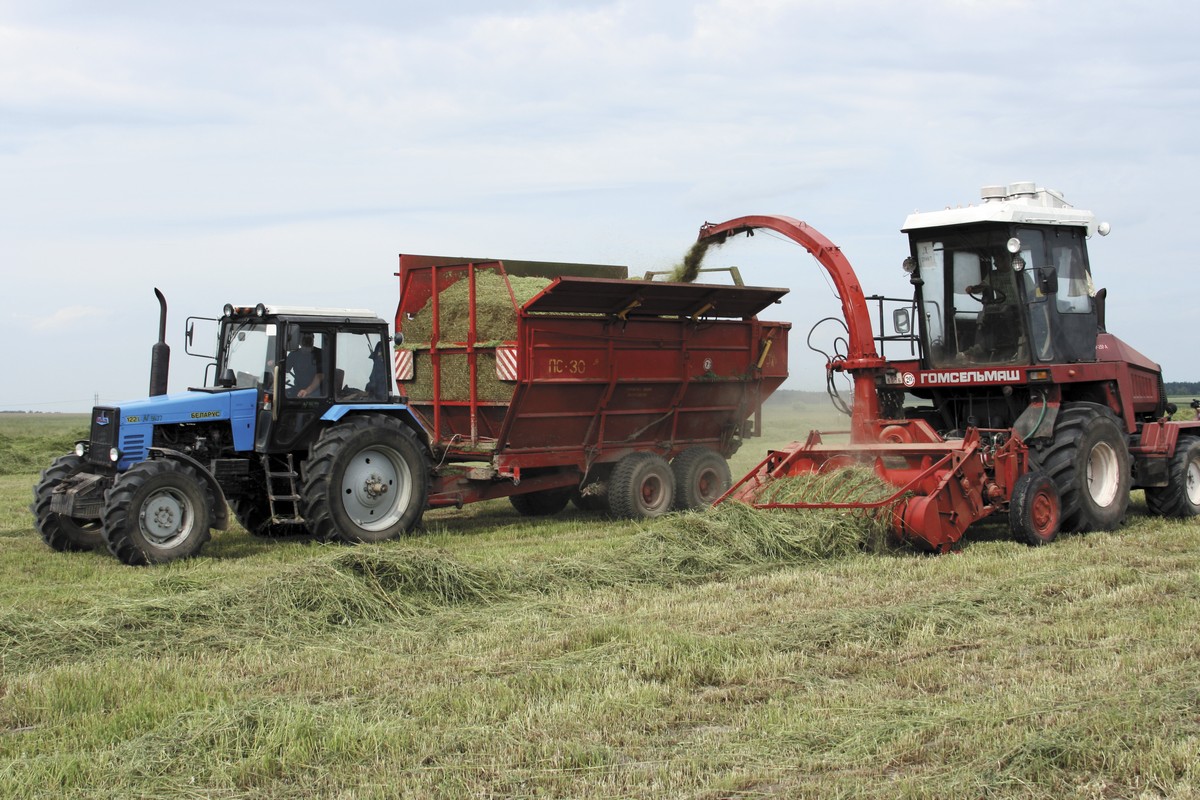

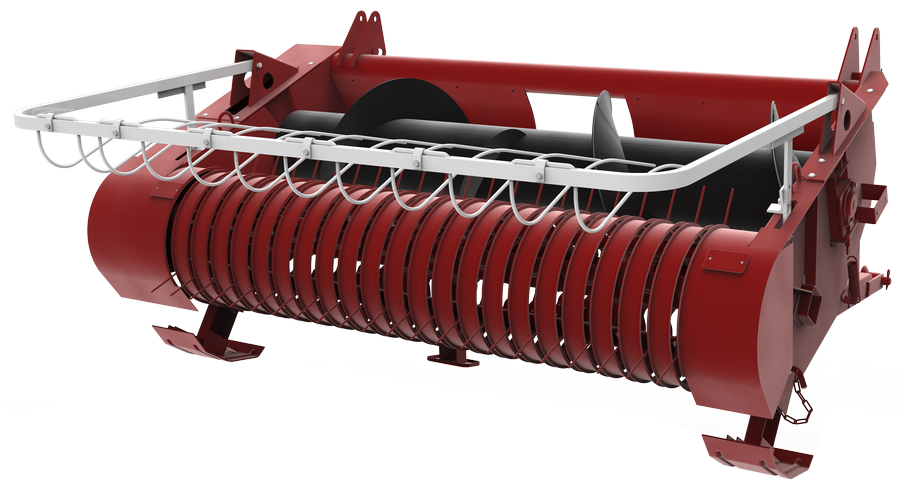

Pick-up
Working width of 1.85 or 3.0 meters. Ensures the collection of swaths without losses of cut mass.

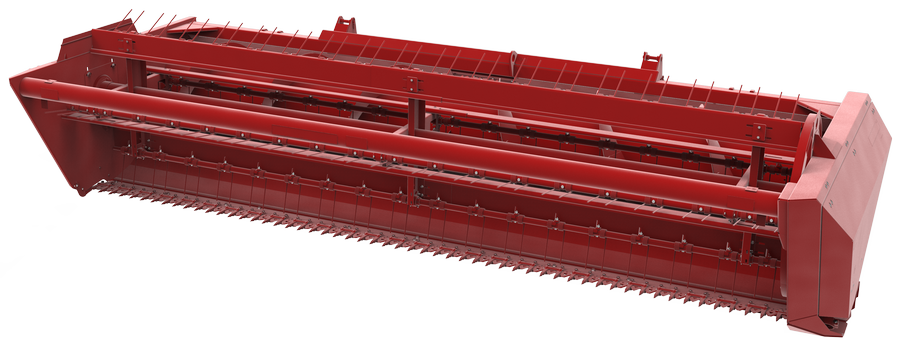

Grass header
System for copying the field relief and the ability to set the cutting height guarantees an equally smooth cut.
The MS280 universal machine can also be combined with a three-section rotary mower-conditioner KPR-9, as well as mounted draper headers ZhVZ-6UM, ZhVZ-7UM, ZhVZ-9U. Having the MS280 in your fleet, you can also aggregate it with the KSN-6-3 mounted beet harvester. The MS280F modification, equipped with cabin protection, can be used in tandem with a mulching cutter.

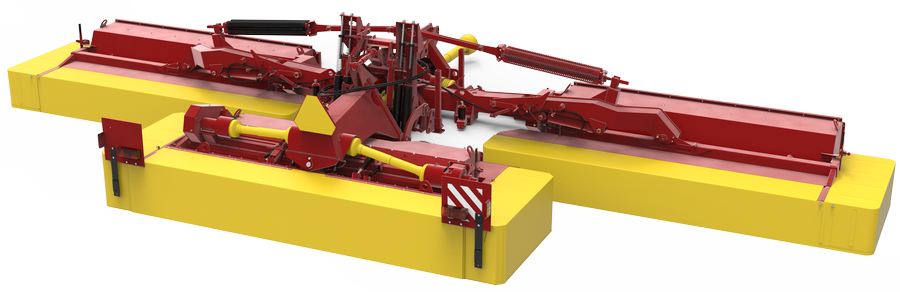

Mower-conditioner KPR-9
Three-section rotary. Performs four operations: mowing grasses with laying in swaths, collecting dried mass for haylage, direct mowing of grasses for green fodder, and harvesting of corn for silage.

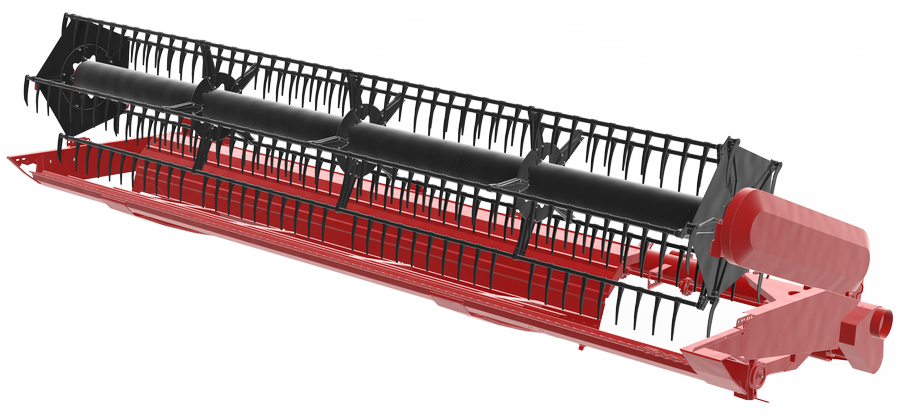

Mounted draper headers
ZhVZ-6UM, ZhVZ-7UM, ZhVZ-9U with a working width of 6.0, 7.0 and 9.2 meters respectively.

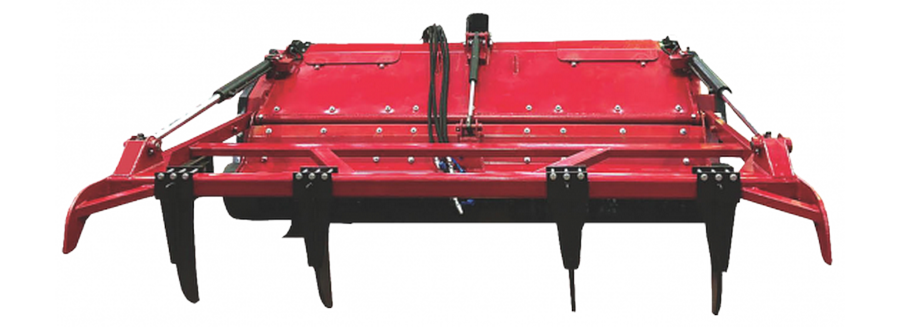

Mulching cutter
The MS280F modification, equipped with cabin protection, can be used in tandem for chopping wood, stumps and shrubs in forestry, energy and agriculture.

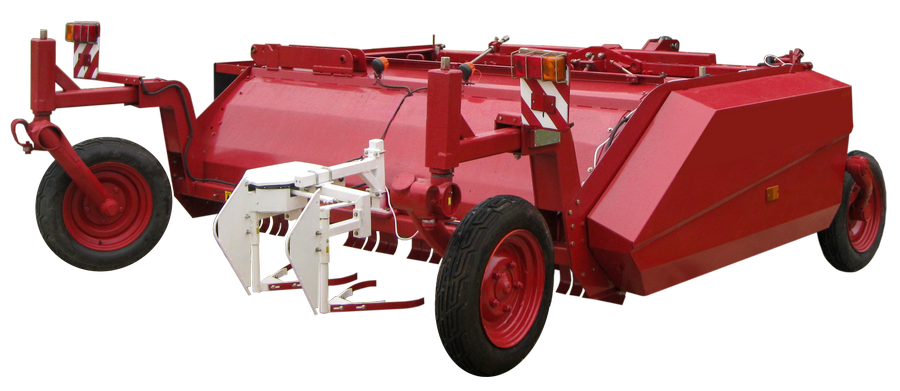

Mounted beet harvester KSN-6-3
Designed for cutting tops, digging up beet roots, cleaning them and placing them in a swath to dry out soil residues, followed by picking them up with a PPK-6.
You can get more detailed information about prices, terms of purchase and deliveries of harvesters from a dealer in your region.
| Model | FS3000 (K-G-6) | |
| Engine | ||

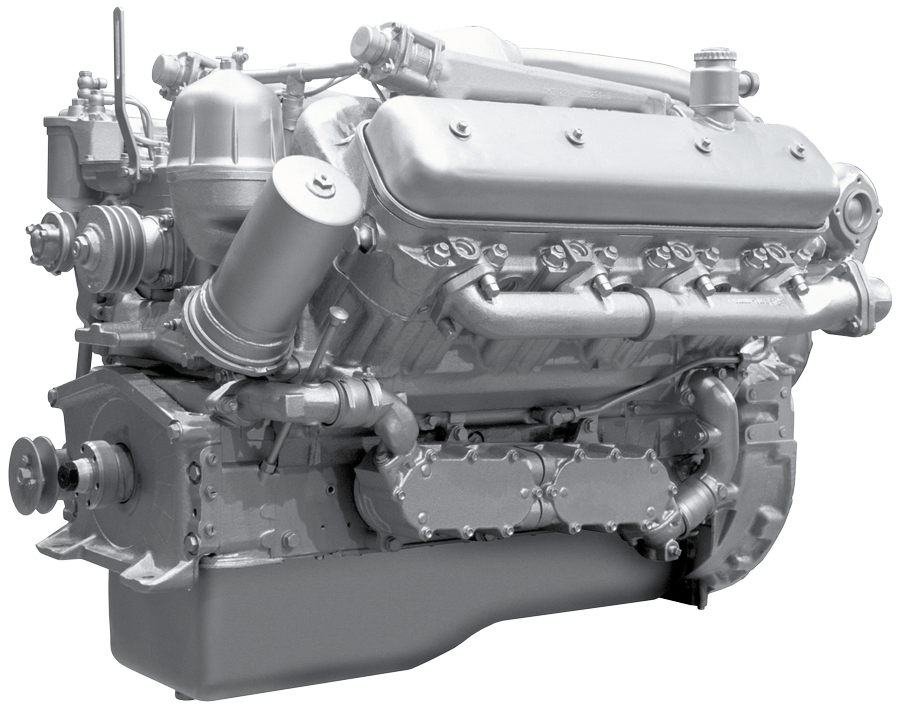

| Engine model | YaMZ-238BK-3 | |
| Engine power, kW / h.p. | 213 / 290 | |
| Displacement, l | 14.86 | |
| Arrangement and number of cylinders | V8 | |
| Fuel tank capacity, l | 412 | |
| Feeding unit | ||
| Width, mm | 414 | |
| Number of feeder rolls, pcs | 4 | |
| Metal detector, stone detector DRUM PROTECT | ● | |
| Chopping unit | ||
| Type | radial disc | |
| Diameter of chopping disc, mm | 1 100 | |
| Frequency of disc rotation, rpm | 1 054 | |
| Number of knives on the disc, pcs | 12 | |
| Variants of knives arrangement, pcs | 3 / 6 / 12 | |
| Length of cut, mm | 5-48 | |
| Adjustment of cutting length | manual | |
| Knives sharpening system | manual | |
| Corn cracker | ○ (disk type) | |
| Silage spout | ||
| Rotation angle of silage spout, ° | 270 | |
| Discharge height, mm | 4 000 | |
| Silage additive tank capacity, l | 400 | |
| Running gear | ||
| Operating speed, km/h | 12 | |
| Road speed, km/h | 20 | |
| All-wheel drive | ○ | |
| Overall dimensions and weight of harvester without header | ||
| Length / width / height, mm | 5 450 / 2 780 / 4 000 | |
| Weight, kg | 8 450 | |
| Headers | ||
| Maize header, m | 3.0 | |
| Pick-up, m | 1.85; 3.0 | |
| Header for grass harvesting, m | 4.2 | |
● serial / ○ option.
