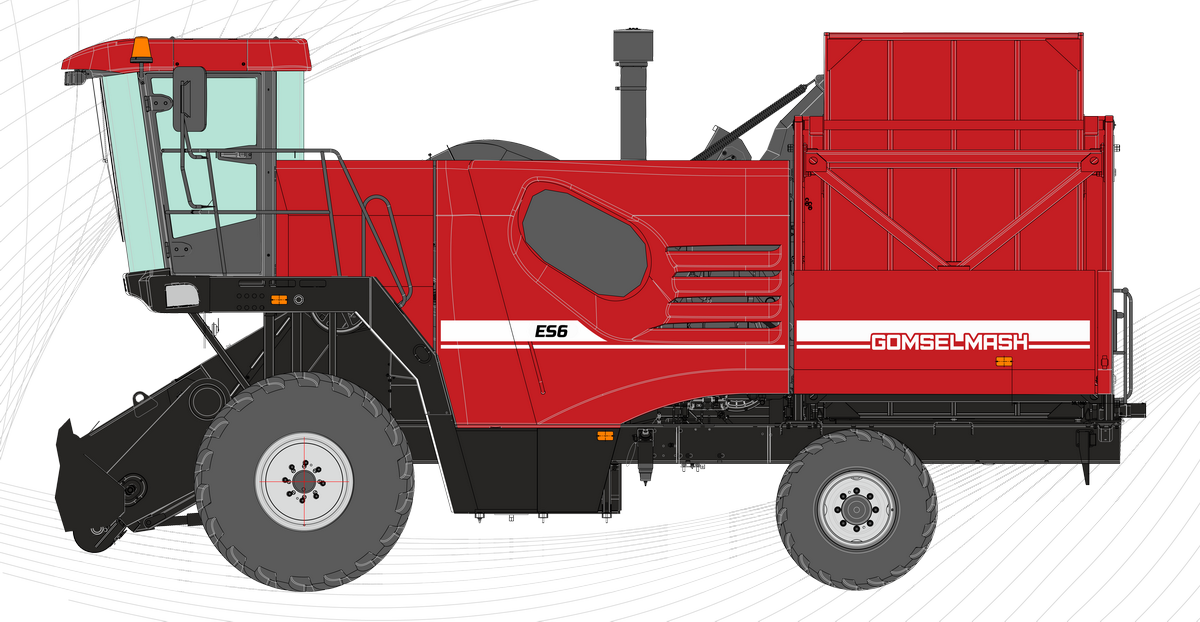

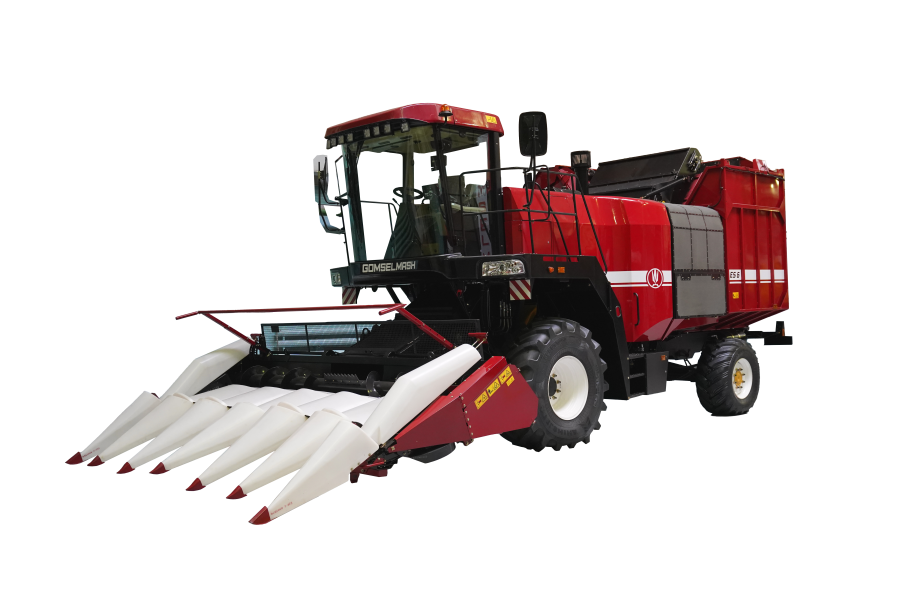

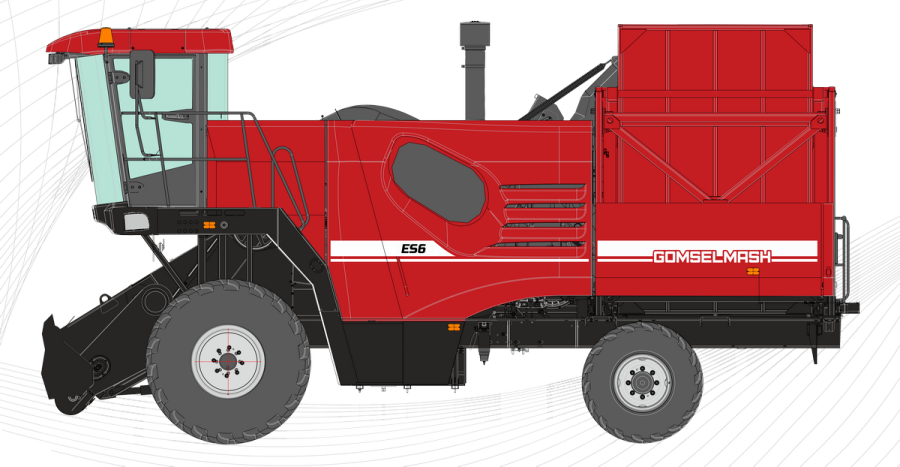

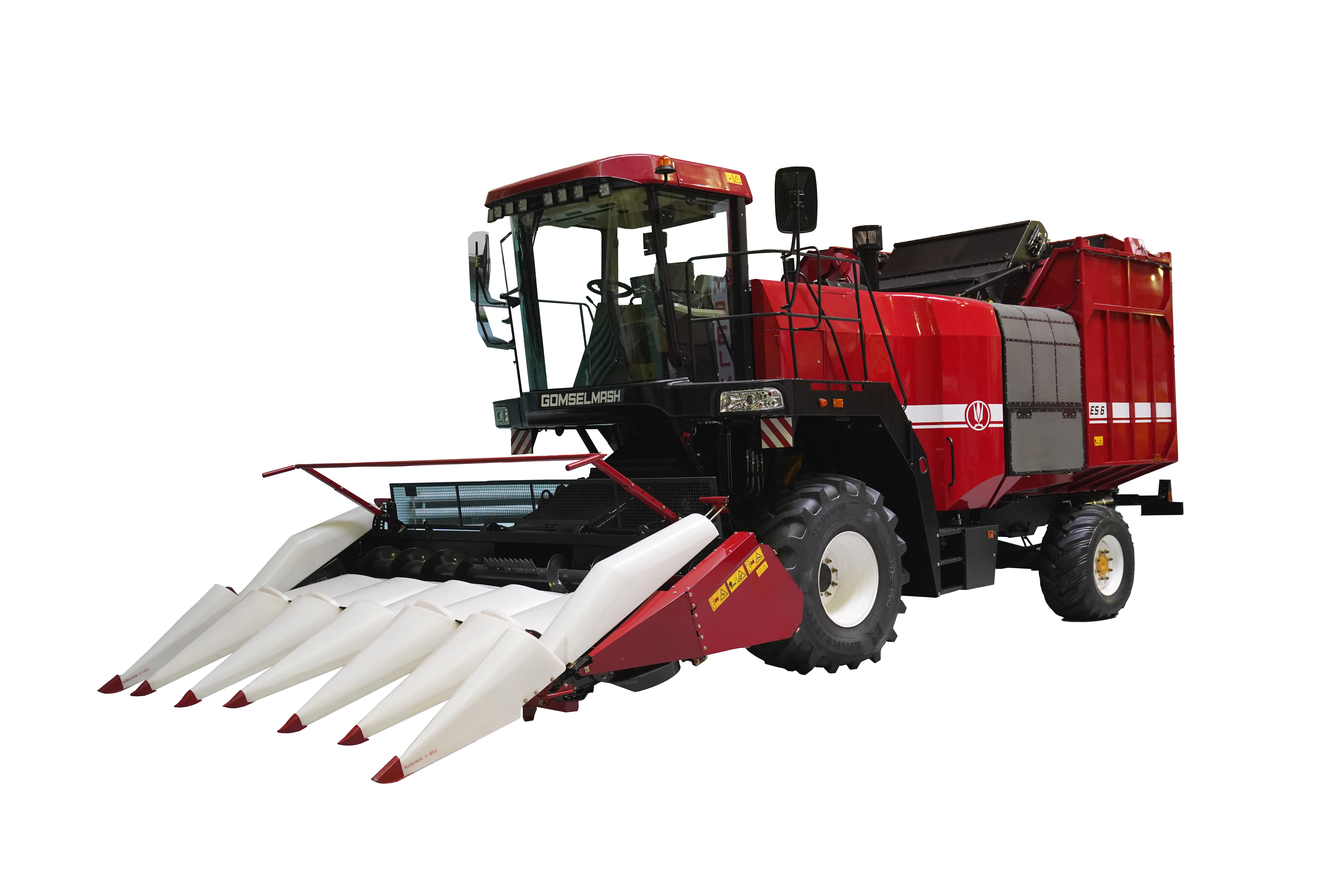

Corn harvester ES6
Engine: 230 h.p.
Working width: 4.2 m
Row spacing: 70 cm
Number of harvested rows: 6 pcs
Corn tank: 10,0 m3
The ES6 corn harvester is designed for collecting corn cobs at the stage of full grain ripeness and can be used in various climatic conditions, with the exception of mountainous areas.
The ES6 harvester has a luxury cabin with air conditioning, a heater, operator protection from noise, vibration and dust, panoramic glazing and an additional folding seat for an assistant. The arrangement of controls in the cabin meets modern requirements, and control of the main operating parameters is comfortably carried out at any time. The combine is equipped with a video monitoring system for the process of feeding cobs, filling the corn tank and backward movement.
The ES6 corn harvester is aggregated by a header with a working width of 4.2 meters with a hydraulic drive and function of adjustment from the cab the distance between a tear-off plates of the header. The header provides harvesting of six rows of corn in one pass, is equipped with a cob separator and a rotary chopping unit. To make it easier to move the harvester on public roads, the header is transported on a trolley.
The feeder housing of the ES6 harvester with a built-in conveyor effectively feeds the crop for further cleaning. A feeding conveyor with two stem catcher rollers, located one above the other, feeds unpeeled cobs into the cob husker device while simultaneously removing stems and leaves through the outlet.
Cob husker
High-performance with 24 rollers formed in 6 chutes, hydraulically driven and speed controlled, ensures fast cleaning of corn cobs.
Pre‑cleaning fan
Blows light impurities (leaves, wrappers, tops of stems) from a heap of cobs and releases them through an outlet onto the field.
Scraper‑type conveyor
Chain‑slat conveyor ensures removal of wrappers, separation of husked grains and transportation of cleaned cobs to the corn tank.
A corn tank with a capacity of 10 m³ ensures the collection of peeled cobs and their unloading into a vehicle by tilting the corn tank using two hydraulic cylinders. To prevent losses during unloading, the corn tank is equipped with a visor, which, when lifted, automatically rotates and closes the gap between the tank and the vehicle.
For complete control of the filling and unloading process, a video camera and a powerful flashlight are installed in the upper part of the corn tank, as well as two working headlights to illuminate the unloading area when working in the dark. For ease of maintenance, there is a turntable and a removable ladder for entering the corn tank on the rear support of the ES6 harvester. And a door designed for access to and passage through the corn tank makes it easier to service the engine.
ARC‑SYSTEM
Radiator cleaning system. The blades of the reversible fan are rotated to change the direction of the air flow passing through the radiators, removing dust and cleaning the core.
ALS‑SYSTEM
Automatic centralized lubrication system. Proper and timely lubrication is essential for long service life and trouble‑free operation of the harvester.
All‑wheel drive
Provides increased cross‑country ability in difficult harvesting conditions. The driving and steering wheels are driven by hydraulic motors, and the front axle is connected by a switch in the cab.
| Model | ES6 | |
| Engine | ||
| Engine model | YaMZ-53649 | |
| Nominal engine power, h.p. | 230 | |
| ARC-SYSTEM | ● | |
| Fuel tank capacity, l | 500 | |
| Working width | ||
| Construction working width, m | 4.2 | |
| Number of harvested rows, pcs | 6 | |
| Row spacing, cm | 70±3.5 | |
| Minimum height of cut, mm | 100 | |
| Cob cleaning device | ||
| Number of sections, pcs | 1 | |
| Number of rollers in a section, pcs | 24 | |
| Cob conveyors | scraper-type | |
| Corn tank | ||
| Corn tank volume, m3 | 10.0 | |
| Unloading height, mm | 3 000 | |
| Running gear | ||
| Operating speed, km/h | 10 | |
| Road speed, km/h | 20 | |
| Drive wheel track, mm | 2 600±50 | |
| Steering wheel track, mm | 2 600±50 | |
| All-wheel drive | ● | |
| ALS-SYSTEM | ● | |
| Overall dimensions and weight of harvester with header | ||
| Length / width / height, mm | 10 500 / 4 600 / 4 000 | |
| Weight, kg | 14 800 | |
